Datapoints for p + nb76 -> mo77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.999370e-69 |
| 0.15 | 7.284402e-47 |
| 0.2 | 1.135325e-35 |
| 0.3 | 2.220295e-24 |
| 0.4 | 1.173554e-18 |
| 0.5 | 3.563730e-15 |
| 0.6 | 8.060140e-13 |
| 0.7 | 4.087421e-11 |
| 0.8 | 8.081904e-10 |
| 0.9 | 8.484320e-09 |
| 1 | 5.696226e-08 |
| 1.5 | 2.040049e-05 |
| 2 | 4.388244e-04 |
| 2.5 | 2.899024e-03 |
| 3 | 1.033088e-02 |
| 3.5 | 2.550517e-02 |
| 4 | 4.966994e-02 |
| 4.5 | 8.222847e-02 |
| 5 | 1.212362e-01 |
| 6 | 2.085079e-01 |
| 7 | 2.939048e-01 |
| 8 | 3.681568e-01 |
| 9 | 4.299374e-01 |
| 10 | 4.825610e-01 |

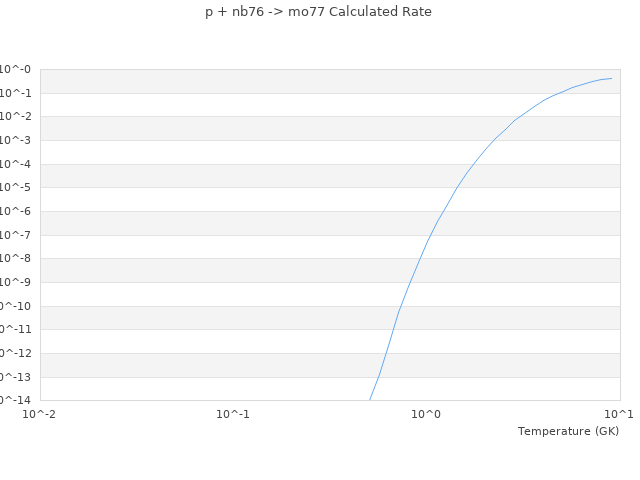

| View Graph | |
