Datapoints for p + rh85 -> pd86
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.581926e-38 |
| 0.15 | 5.298422e-28 |
| 0.2 | 8.553730e-23 |
| 0.3 | 2.984317e-17 |
| 0.4 | 3.198508e-14 |
| 0.5 | 3.050932e-12 |
| 0.6 | 8.197606e-11 |
| 0.7 | 1.030913e-09 |
| 0.8 | 7.880155e-09 |
| 0.9 | 4.251951e-08 |
| 1 | 1.776499e-07 |
| 1.5 | 2.392562e-05 |
| 2 | 4.596585e-04 |
| 2.5 | 3.372236e-03 |
| 3 | 1.388451e-02 |
| 3.5 | 3.883146e-02 |
| 4 | 8.227385e-02 |
| 4.5 | 1.414277e-01 |
| 5 | 2.065438e-01 |
| 6 | 3.050845e-01 |
| 7 | 3.152297e-01 |
| 8 | 2.526311e-01 |
| 9 | 1.679148e-01 |
| 10 | 9.692788e-02 |

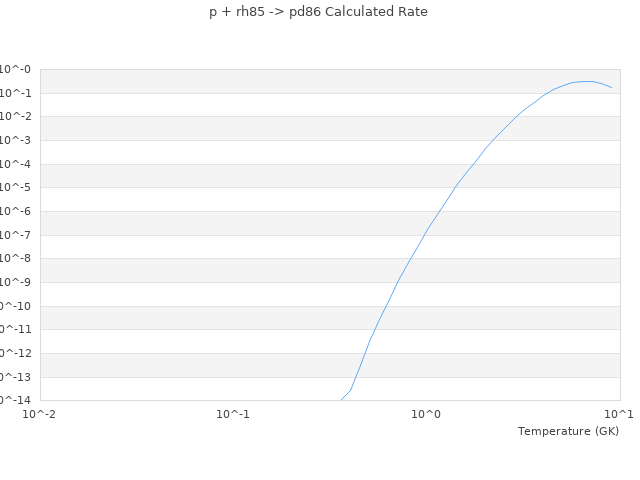

| View Graph | |
