Datapoints for cs107 -> p + xe106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.855338e+06 |
| 0.15 | 1.238534e+07 |
| 0.2 | 2.597184e+07 |
| 0.3 | 8.291491e+07 |
| 0.4 | 2.064525e+08 |
| 0.5 | 4.416662e+08 |
| 0.6 | 8.512366e+08 |
| 0.7 | 1.518829e+09 |
| 0.8 | 2.552467e+09 |
| 0.9 | 4.087780e+09 |
| 1 | 6.290991e+09 |
| 1.5 | 3.556572e+10 |
| 2 | 1.267989e+11 |
| 2.5 | 3.375180e+11 |
| 3 | 7.291598e+11 |
| 3.5 | 1.341797e+12 |
| 4 | 2.169308e+12 |
| 4.5 | 3.147256e+12 |
| 5 | 4.160613e+12 |
| 6 | 5.744200e+12 |
| 7 | 6.090941e+12 |
| 8 | 5.173645e+12 |
| 9 | 3.624763e+12 |
| 10 | 2.140122e+12 |

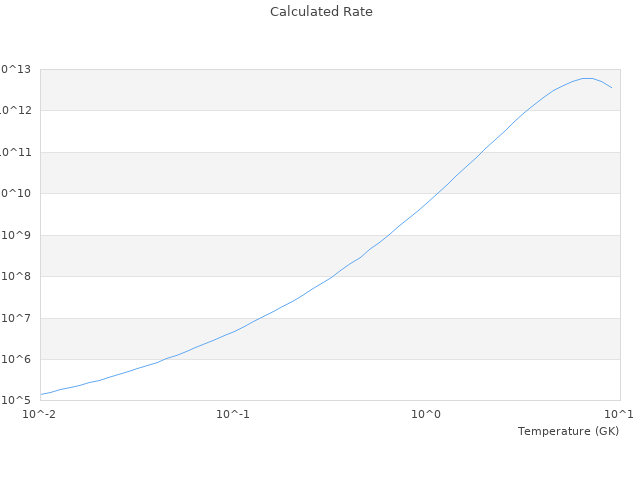

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
