Datapoints for cs109 -> p + xe108
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.179019e+06 |
| 0.15 | 3.760201e+06 |
| 0.2 | 9.299210e+06 |
| 0.3 | 3.757665e+07 |
| 0.4 | 1.102106e+08 |
| 0.5 | 2.660823e+08 |
| 0.6 | 5.624015e+08 |
| 0.7 | 1.078073e+09 |
| 0.8 | 1.916572e+09 |
| 0.9 | 3.208138e+09 |
| 1 | 5.111155e+09 |
| 1.5 | 3.128322e+10 |
| 2 | 1.106866e+11 |
| 2.5 | 2.807566e+11 |
| 3 | 5.672334e+11 |
| 3.5 | 9.696435e+11 |
| 4 | 1.457053e+12 |
| 4.5 | 1.975142e+12 |
| 5 | 2.460345e+12 |
| 6 | 3.118635e+12 |
| 7 | 3.202006e+12 |
| 8 | 2.794345e+12 |
| 9 | 2.141462e+12 |
| 10 | 1.475075e+12 |

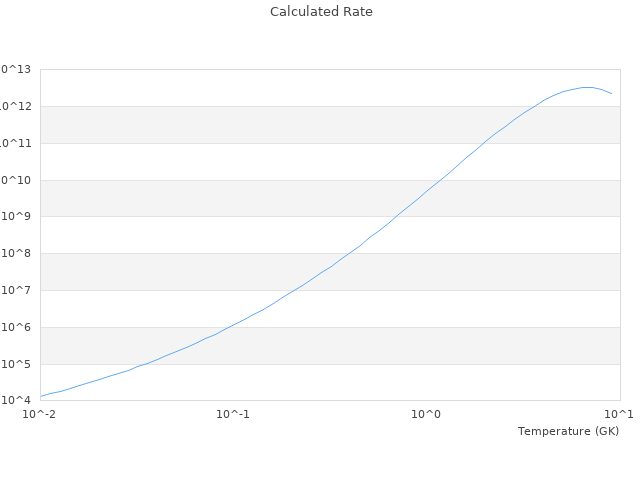

| View Graph | |
