Datapoints for p + xe115 -> cs116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.323181e-37 |
| 0.15 | 2.527521e-30 |
| 0.2 | 6.876927e-26 |
| 0.3 | 2.465647e-20 |
| 0.4 | 7.763201e-17 |
| 0.5 | 2.368475e-14 |
| 0.6 | 1.847334e-12 |
| 0.7 | 5.956226e-11 |
| 0.8 | 1.040028e-09 |
| 0.9 | 1.160584e-08 |
| 1 | 9.222488e-08 |
| 1.5 | 1.308464e-04 |
| 2 | 1.150931e-02 |
| 2.5 | 2.511650e-01 |
| 3 | 2.382621e+00 |
| 3.5 | 1.297874e+01 |
| 4 | 4.749534e+01 |
| 4.5 | 1.286076e+02 |
| 5 | 2.745549e+02 |
| 6 | 7.215718e+02 |
| 7 | 1.080507e+03 |
| 8 | 1.048819e+03 |
| 9 | 7.153847e+02 |
| 10 | 3.618879e+02 |

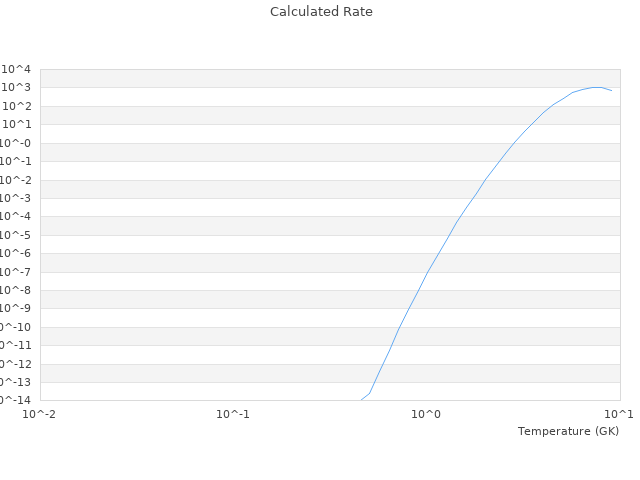

| View Graph | |
