Datapoints for mg20 -> he4 + ne16
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-312 |
| 0.2 | 2.214388e-234 |
| 0.3 | 1.491349e-155 |
| 0.4 | 1.532640e-115 |
| 0.5 | 3.261761e-91 |
| 0.6 | 8.487756e-75 |
| 0.7 | 6.097262e-63 |
| 0.8 | 5.888987e-54 |
| 0.9 | 6.709026e-47 |
| 1 | 3.342635e-41 |
| 1.5 | 9.976611e-24 |
| 2 | 1.141834e-14 |
| 2.5 | 4.528760e-09 |
| 3 | 3.037963e-05 |
| 3.5 | 1.883952e-02 |
| 4 | 2.563107e+00 |
| 4.5 | 1.246193e+02 |
| 5 | 2.914815e+03 |
| 6 | 3.593919e+05 |
| 7 | 1.204759e+07 |
| 8 | 1.759494e+08 |
| 9 | 1.463745e+09 |
| 10 | 8.175138e+09 |

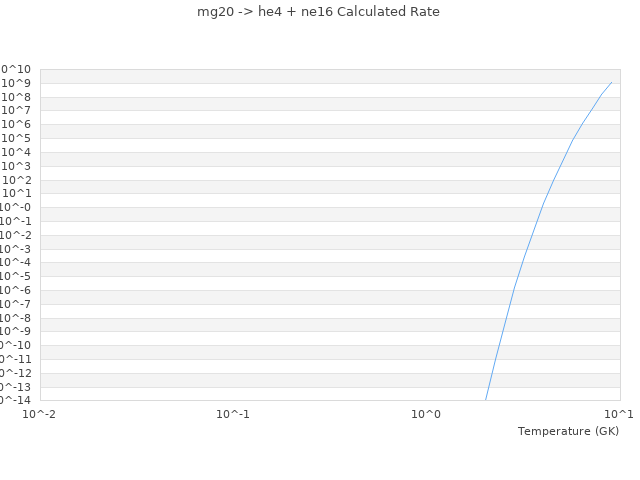

| View Graph | |
