Datapoints for al24 -> he4 + na20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 4.741611e-248 |
| 0.3 | 7.357733e-165 |
| 0.4 | 1.269618e-122 |
| 0.5 | 6.163416e-97 |
| 0.6 | 1.331960e-79 |
| 0.7 | 4.432054e-67 |
| 0.8 | 1.371410e-57 |
| 0.9 | 3.905390e-50 |
| 1 | 4.081672e-44 |
| 1.5 | 1.189444e-25 |
| 2 | 4.447711e-16 |
| 2.5 | 3.665543e-10 |
| 3 | 4.049939e-06 |
| 3.5 | 3.611749e-03 |
| 4 | 6.482262e-01 |
| 4.5 | 3.922322e+01 |
| 5 | 1.095667e+03 |
| 6 | 1.773584e+05 |
| 7 | 7.270571e+06 |
| 8 | 1.242966e+08 |
| 9 | 1.176779e+09 |
| 10 | 7.341076e+09 |

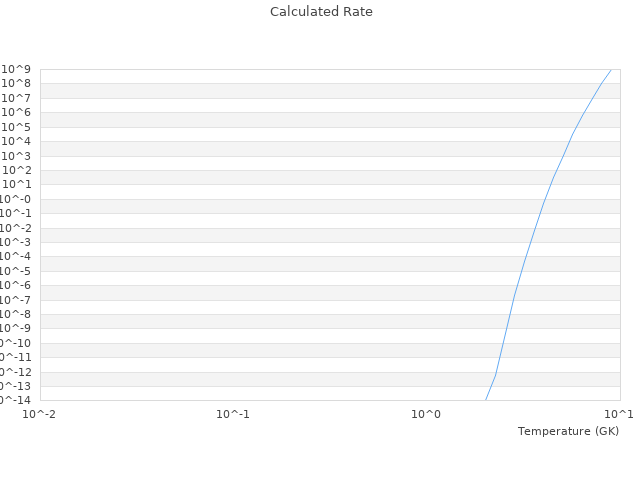

| View Graph | |
