Datapoints for si24 -> he4 + mg20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.760270e-247 |
| 0.3 | 9.630220e-165 |
| 0.4 | 1.088140e-122 |
| 0.5 | 4.328791e-97 |
| 0.6 | 8.485450e-80 |
| 0.7 | 2.698783e-67 |
| 0.8 | 8.219684e-58 |
| 0.9 | 2.344395e-50 |
| 1 | 2.480440e-44 |
| 1.5 | 8.185454e-26 |
| 2 | 3.537725e-16 |
| 2.5 | 3.338756e-10 |
| 3 | 4.167569e-06 |
| 3.5 | 4.144353e-03 |
| 4 | 8.196912e-01 |
| 4.5 | 5.408765e+01 |
| 5 | 1.632311e+03 |
| 6 | 3.009518e+05 |
| 7 | 1.366303e+07 |
| 8 | 2.525297e+08 |
| 9 | 2.530483e+09 |
| 10 | 1.639169e+10 |

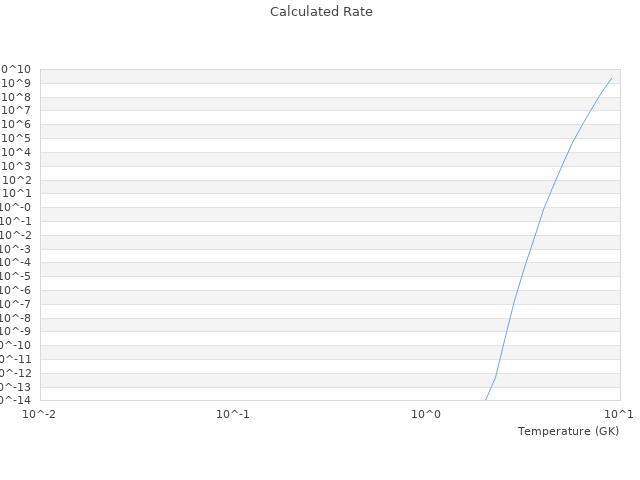

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
