Datapoints for he4 + al26 -> p30
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.501858e-35 |
| 0.15 | 2.761321e-28 |
| 0.2 | 3.130748e-24 |
| 0.3 | 3.471400e-19 |
| 0.4 | 4.877048e-16 |
| 0.5 | 8.001334e-14 |
| 0.6 | 3.756524e-12 |
| 0.7 | 7.863611e-11 |
| 0.8 | 9.414383e-10 |
| 0.9 | 7.507632e-09 |
| 1 | 4.405160e-08 |
| 1.5 | 1.903039e-05 |
| 2 | 7.170742e-04 |
| 2.5 | 8.326290e-03 |
| 3 | 4.942281e-02 |
| 3.5 | 1.923359e-01 |
| 4 | 5.637973e-01 |
| 4.5 | 1.354470e+00 |
| 5 | 2.816738e+00 |
| 6 | 9.068622e+00 |
| 7 | 2.269950e+01 |
| 8 | 4.898075e+01 |
| 9 | 9.692398e+01 |
| 10 | 1.829517e+02 |

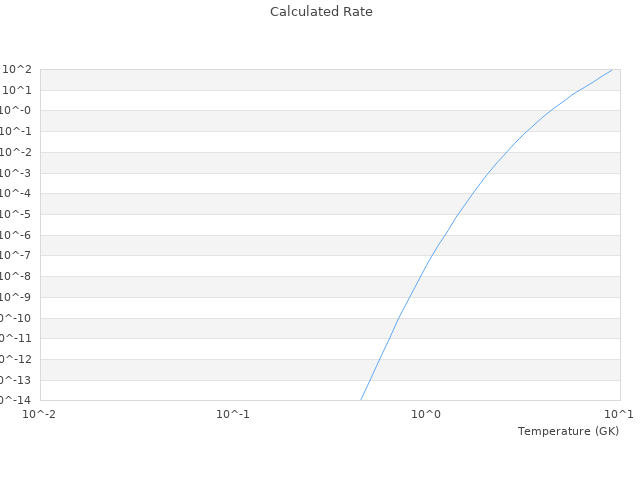

| View Graph | |
