Datapoints for ar33 -> he4 + s29
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-316 |
| 0.2 | 1.656623e-238 |
| 0.3 | 1.254899e-159 |
| 0.4 | 2.285273e-119 |
| 0.5 | 9.000009e-95 |
| 0.6 | 4.163949e-78 |
| 0.7 | 5.032457e-66 |
| 0.8 | 7.751953e-57 |
| 0.9 | 1.343105e-49 |
| 1 | 9.766082e-44 |
| 1.5 | 1.235732e-25 |
| 2 | 3.770385e-16 |
| 2.5 | 3.069129e-10 |
| 3 | 3.586823e-06 |
| 3.5 | 3.469555e-03 |
| 4 | 6.805620e-01 |
| 4.5 | 4.500462e+01 |
| 5 | 1.369293e+03 |
| 6 | 2.590811e+05 |
| 7 | 1.215737e+07 |
| 8 | 2.334049e+08 |
| 9 | 2.440853e+09 |
| 10 | 1.658376e+10 |

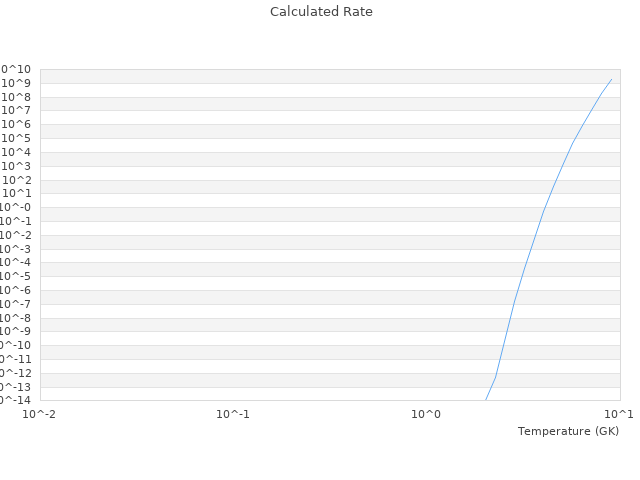

| View Graph | |
