Datapoints for ti35 -> he4 + ca31
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-319 |
| 0.3 | 2.606837e-215 |
| 0.4 | 2.895230e-162 |
| 0.5 | 6.316557e-130 |
| 0.6 | 4.715438e-108 |
| 0.7 | 3.211989e-92 |
| 0.8 | 3.390665e-80 |
| 0.9 | 9.814765e-71 |
| 1 | 4.419104e-63 |
| 1.5 | 1.694254e-39 |
| 2 | 3.566901e-27 |
| 2.5 | 1.670994e-19 |
| 3 | 3.165719e-14 |
| 3.5 | 2.370860e-10 |
| 4 | 2.245971e-07 |
| 4.5 | 5.198223e-05 |
| 5 | 4.393318e-03 |
| 6 | 3.974350e+00 |
| 7 | 5.795510e+02 |
| 8 | 2.591042e+04 |
| 9 | 5.125775e+05 |
| 10 | 5.623126e+06 |

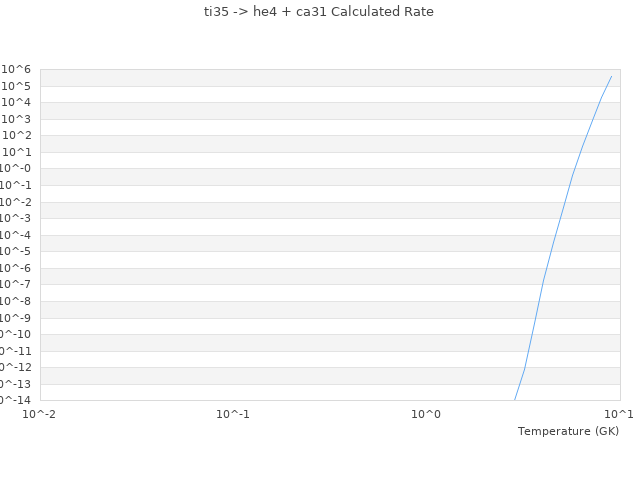

| View Graph | |
