Datapoints for ti45 -> he4 + ca41
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.911273e-240 |
| 0.2 | 1.442048e-181 |
| 0.3 | 2.233410e-121 |
| 0.4 | 2.527825e-90 |
| 0.5 | 3.496091e-71 |
| 0.6 | 4.090604e-58 |
| 0.7 | 1.407554e-48 |
| 0.8 | 2.765750e-41 |
| 0.9 | 1.647139e-35 |
| 1 | 8.192806e-31 |
| 1.5 | 3.515516e-16 |
| 2 | 1.939152e-08 |
| 2.5 | 1.332388e-03 |
| 3 | 2.789800e+00 |
| 3.5 | 7.386362e+02 |
| 4 | 5.161300e+04 |
| 4.5 | 1.450710e+06 |
| 5 | 2.127252e+07 |
| 6 | 1.213700e+09 |
| 7 | 2.184557e+10 |
| 8 | 1.907170e+11 |
| 9 | 1.035070e+12 |
| 10 | 4.073247e+12 |

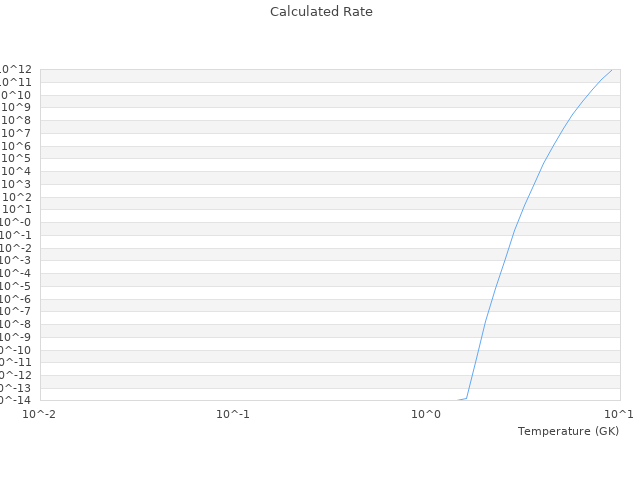

| View Graph | |
