Datapoints for ge71 -> he4 + zn67
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.540210e-280 |
| 0.15 | 2.873505e-193 |
| 0.2 | 3.244234e-148 |
| 0.3 | 3.256143e-101 |
| 0.4 | 1.823035e-76 |
| 0.5 | 5.890318e-61 |
| 0.6 | 3.227465e-50 |
| 0.7 | 2.764860e-42 |
| 0.8 | 3.749267e-36 |
| 0.9 | 2.993992e-31 |
| 1 | 3.146232e-27 |
| 1.5 | 1.858659e-14 |
| 2 | 1.637285e-07 |
| 2.5 | 4.358206e-03 |
| 3 | 5.295066e+00 |
| 3.5 | 1.005753e+03 |
| 4 | 5.701291e+04 |
| 4.5 | 1.403772e+06 |
| 5 | 1.897514e+07 |
| 6 | 1.014364e+09 |
| 7 | 1.857841e+10 |
| 8 | 1.742038e+11 |
| 9 | 1.057284e+12 |
| 10 | 4.810393e+12 |

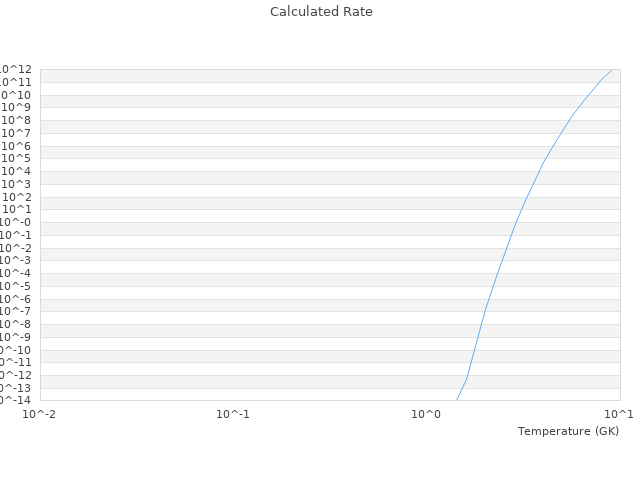

| View Graph | |
