Datapoints for he4 + pd102 -> cd106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.007940e-92 |
| 0.15 | 4.953799e-76 |
| 0.2 | 5.418501e-66 |
| 0.3 | 2.054598e-53 |
| 0.4 | 1.708996e-45 |
| 0.5 | 7.131346e-40 |
| 0.6 | 1.344865e-35 |
| 0.7 | 3.409662e-32 |
| 0.8 | 2.146071e-29 |
| 0.9 | 4.885681e-27 |
| 1 | 5.145524e-25 |
| 1.5 | 5.854928e-18 |
| 2 | 1.265764e-13 |
| 2.5 | 1.232456e-10 |
| 3 | 1.946069e-08 |
| 3.5 | 9.408501e-07 |
| 4 | 1.991659e-05 |
| 4.5 | 2.299458e-04 |
| 5 | 1.671732e-03 |
| 6 | 3.183676e-02 |
| 7 | 2.280780e-01 |
| 8 | 8.174792e-01 |
| 9 | 1.747141e+00 |
| 10 | 2.498319e+00 |

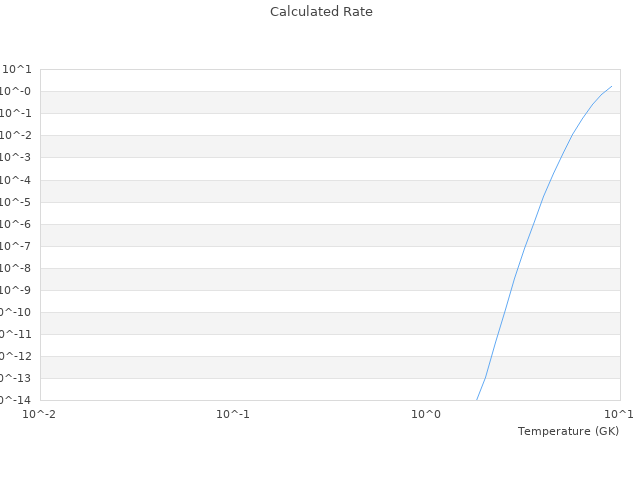

| View Graph | |
