Datapoints for cd108 -> he4 + pd104
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.524003e-198 |
| 0.15 | 1.769641e-143 |
| 0.2 | 5.698072e-114 |
| 0.3 | 8.061554e-82 |
| 0.4 | 4.816930e-64 |
| 0.5 | 1.801846e-52 |
| 0.6 | 3.334800e-44 |
| 0.7 | 6.217045e-38 |
| 0.8 | 5.656662e-33 |
| 0.9 | 6.264624e-29 |
| 1 | 1.492667e-25 |
| 1.5 | 2.098533e-14 |
| 2 | 5.182693e-08 |
| 2.5 | 8.606327e-04 |
| 3 | 8.880551e-01 |
| 3.5 | 1.620361e+02 |
| 4 | 9.206616e+03 |
| 4.5 | 2.281464e+05 |
| 5 | 3.057151e+06 |
| 6 | 1.482506e+08 |
| 7 | 2.166978e+09 |
| 8 | 1.419531e+10 |
| 9 | 5.288137e+10 |
| 10 | 1.305471e+11 |

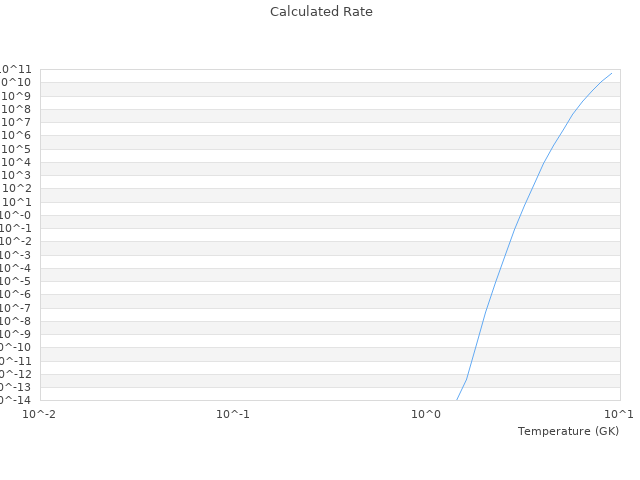

| View Graph | |
