Datapoints for he4 + na23 -> p + mg26
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.124628e-27 |
| 0.15 | 1.482890e-21 |
| 0.2 | 7.123416e-18 |
| 0.3 | 2.867372e-13 |
| 0.4 | 2.233173e-10 |
| 0.5 | 2.482304e-08 |
| 0.6 | 8.839890e-07 |
| 0.7 | 1.506115e-05 |
| 0.8 | 1.538442e-04 |
| 0.9 | 1.082050e-03 |
| 1 | 5.736917e-03 |
| 1.5 | 1.831860e+00 |
| 2 | 5.983292e+01 |
| 2.5 | 6.406383e+02 |
| 3 | 3.601263e+03 |
| 3.5 | 1.342167e+04 |
| 4 | 3.780976e+04 |
| 4.5 | 8.724042e+04 |
| 5 | 1.737388e+05 |
| 6 | 5.061142e+05 |
| 7 | 1.121882e+06 |
| 8 | 2.095220e+06 |
| 9 | 3.507206e+06 |
| 10 | 5.476368e+06 |

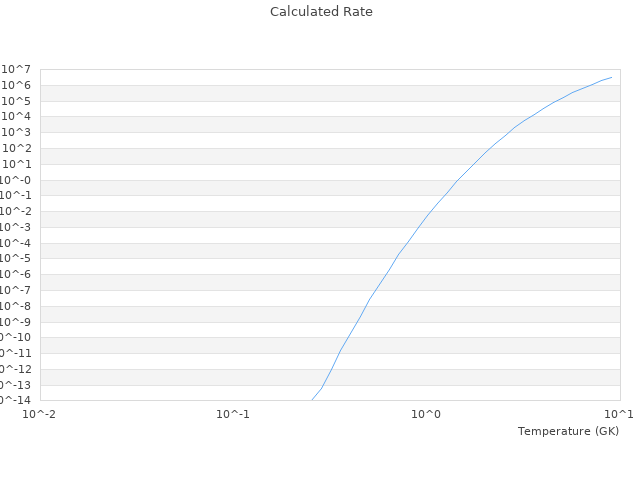

| View Graph | |
