Datapoints for p + al26 -> he4 + mg23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.984717e-124 |
| 0.15 | 2.577730e-86 |
| 0.2 | 1.072822e-66 |
| 0.3 | 4.223529e-46 |
| 0.4 | 3.525385e-35 |
| 0.5 | 2.696708e-28 |
| 0.6 | 1.660711e-23 |
| 0.7 | 5.936124e-20 |
| 0.8 | 3.395343e-17 |
| 0.9 | 5.534647e-15 |
| 1 | 3.663653e-13 |
| 1.5 | 2.477055e-07 |
| 2 | 4.057724e-04 |
| 2.5 | 4.812263e-02 |
| 3 | 1.397798e+00 |
| 3.5 | 1.732520e+01 |
| 4 | 1.227848e+02 |
| 4.5 | 5.899812e+02 |
| 5 | 2.138301e+03 |
| 6 | 1.563752e+04 |
| 7 | 6.792610e+04 |
| 8 | 2.108074e+05 |
| 9 | 5.209177e+05 |
| 10 | 1.097217e+06 |

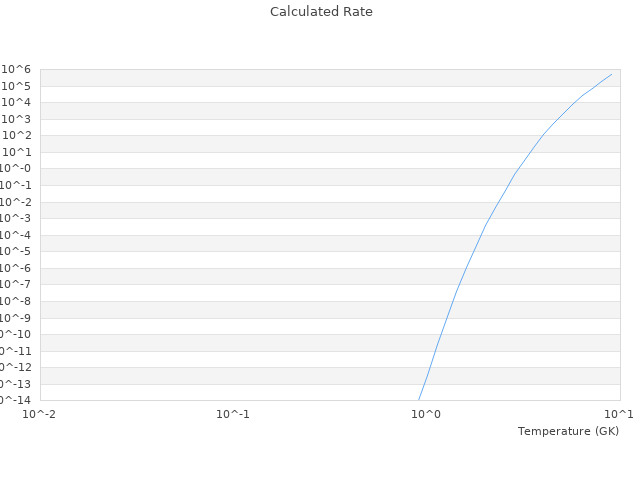

| View Graph | |
