Datapoints for he4 + mn43 -> p + fe46
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.894094e-57 |
| 0.15 | 1.983313e-46 |
| 0.2 | 6.565460e-40 |
| 0.3 | 9.492102e-32 |
| 0.4 | 1.286740e-26 |
| 0.5 | 5.611461e-23 |
| 0.6 | 3.287269e-20 |
| 0.7 | 5.252276e-18 |
| 0.8 | 3.408260e-16 |
| 0.9 | 1.146620e-14 |
| 1 | 2.345803e-13 |
| 1.5 | 9.058205e-09 |
| 2 | 6.291078e-06 |
| 2.5 | 6.060804e-04 |
| 3 | 1.847015e-02 |
| 3.5 | 2.677111e-01 |
| 4 | 2.320334e+00 |
| 4.5 | 1.383589e+01 |
| 5 | 6.219688e+01 |
| 6 | 6.796315e+02 |
| 7 | 4.168300e+03 |
| 8 | 1.716682e+04 |
| 9 | 5.297623e+04 |
| 10 | 1.315722e+05 |

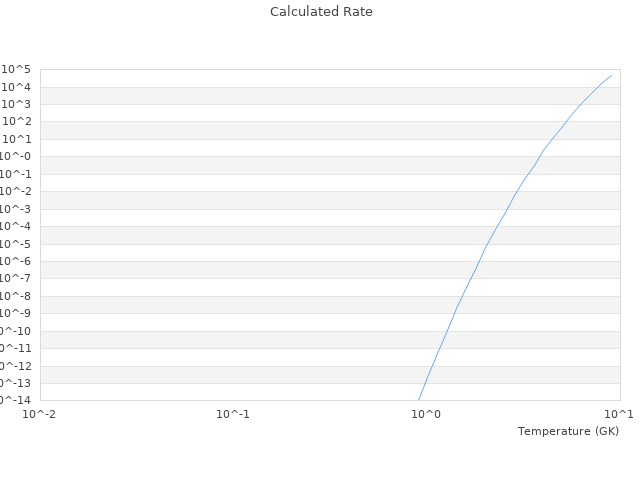

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
