Datapoints for he4 + mn51 -> p + fe54
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.598824e-57 |
| 0.15 | 2.431456e-46 |
| 0.2 | 8.736499e-40 |
| 0.3 | 1.401336e-31 |
| 0.4 | 2.027589e-26 |
| 0.5 | 9.252402e-23 |
| 0.6 | 5.603995e-20 |
| 0.7 | 9.183929e-18 |
| 0.8 | 6.078126e-16 |
| 0.9 | 2.076726e-14 |
| 1 | 4.300903e-13 |
| 1.5 | 1.712393e-08 |
| 2 | 1.192571e-05 |
| 2.5 | 1.136225e-03 |
| 3 | 3.397486e-02 |
| 3.5 | 4.808768e-01 |
| 4 | 4.057970e+00 |
| 4.5 | 2.351591e+01 |
| 5 | 1.026255e+02 |
| 6 | 1.055563e+03 |
| 7 | 6.096436e+03 |
| 8 | 2.368998e+04 |
| 9 | 6.917833e+04 |
| 10 | 1.631473e+05 |

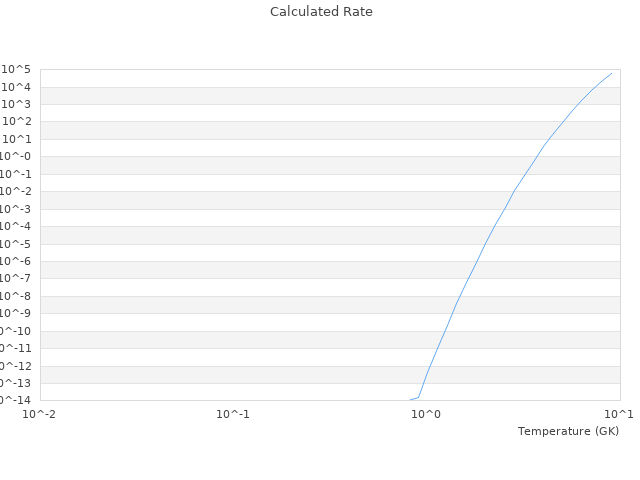

| View Graph | |
