Datapoints for he4 + sr74 -> p + y77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.531815e-79 |
| 0.15 | 4.049370e-65 |
| 0.2 | 2.199286e-56 |
| 0.3 | 1.877787e-45 |
| 0.4 | 1.405086e-38 |
| 0.5 | 1.051731e-33 |
| 0.6 | 5.345934e-30 |
| 0.7 | 4.766743e-27 |
| 0.8 | 1.271195e-24 |
| 0.9 | 1.406275e-22 |
| 1 | 7.991542e-21 |
| 1.5 | 1.099200e-14 |
| 2 | 6.988541e-11 |
| 2.5 | 3.168721e-08 |
| 3 | 3.089882e-06 |
| 3.5 | 1.118500e-04 |
| 4 | 2.041753e-03 |
| 4.5 | 2.267105e-02 |
| 5 | 1.730440e-01 |
| 6 | 4.468970e+00 |
| 7 | 5.390486e+01 |
| 8 | 3.857284e+02 |
| 9 | 1.894991e+03 |
| 10 | 7.029041e+03 |

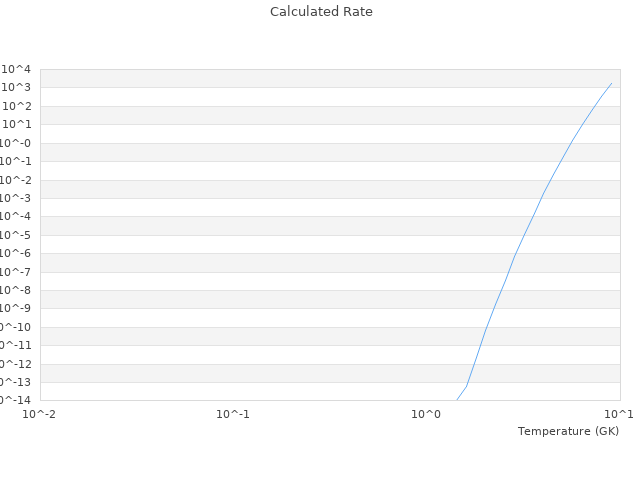

| View Graph | |
