Datapoints for p + nb77 -> he4 + zr74
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.606269e-197 |
| 0.15 | 1.266563e-144 |
| 0.2 | 2.561047e-116 |
| 0.3 | 9.470294e-86 |
| 0.4 | 5.135839e-69 |
| 0.5 | 3.337530e-58 |
| 0.6 | 1.594433e-50 |
| 0.7 | 1.000591e-44 |
| 0.8 | 3.705056e-40 |
| 0.9 | 1.924851e-36 |
| 1 | 2.401960e-33 |
| 1.5 | 3.780991e-23 |
| 2 | 2.772380e-17 |
| 2.5 | 2.272610e-13 |
| 3 | 1.574689e-10 |
| 3.5 | 2.364309e-08 |
| 4 | 1.274303e-06 |
| 4.5 | 3.321705e-05 |
| 5 | 5.058154e-04 |
| 6 | 3.729068e-02 |
| 7 | 9.568995e-01 |
| 8 | 1.201106e+01 |
| 9 | 9.031491e+01 |
| 10 | 4.629724e+02 |

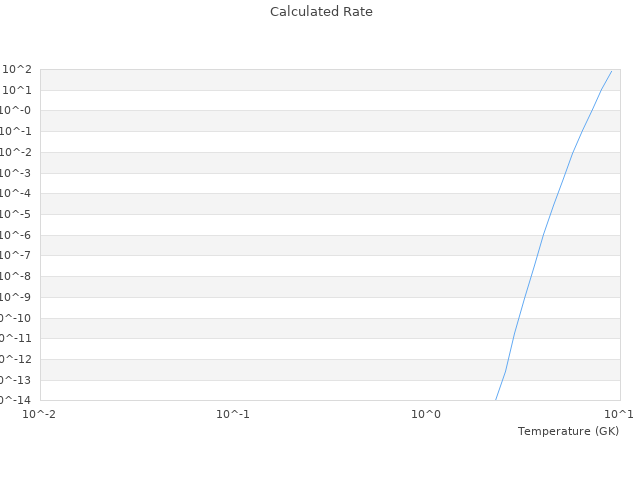

| View Graph | |
