Datapoints for p + pd88 -> he4 + rh85
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.899485e-246 |
| 0.2 | 4.221670e-193 |
| 0.3 | 1.330616e-137 |
| 0.4 | 2.837320e-108 |
| 0.5 | 7.777974e-90 |
| 0.6 | 4.950976e-77 |
| 0.7 | 1.512808e-67 |
| 0.8 | 3.408911e-60 |
| 0.9 | 2.674941e-54 |
| 1 | 1.891792e-49 |
| 1.5 | 6.382927e-34 |
| 2 | 2.461177e-25 |
| 2.5 | 9.176924e-20 |
| 3 | 8.359805e-16 |
| 3.5 | 8.056787e-13 |
| 4 | 1.774563e-10 |
| 4.5 | 1.397106e-08 |
| 5 | 5.198553e-07 |
| 6 | 1.500293e-04 |
| 7 | 1.054501e-02 |
| 8 | 2.920245e-01 |
| 9 | 4.224051e+00 |
| 10 | 3.810735e+01 |

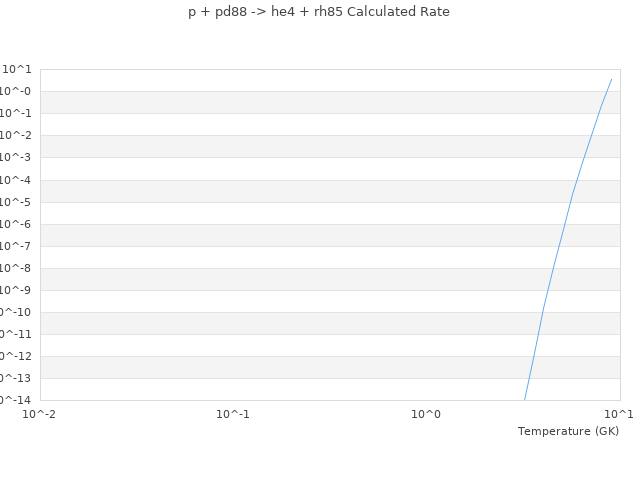

| View Graph | |
