Datapoints for p + ag90 -> he4 + pd87
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.726008e-236 |
| 0.15 | 2.329985e-172 |
| 0.2 | 2.328791e-138 |
| 0.3 | 6.970720e-102 |
| 0.4 | 4.670297e-82 |
| 0.5 | 2.578519e-69 |
| 0.6 | 2.646115e-60 |
| 0.7 | 1.595294e-53 |
| 0.8 | 3.394332e-48 |
| 0.9 | 7.143732e-44 |
| 1 | 2.814490e-40 |
| 1.5 | 1.768075e-28 |
| 2 | 1.020194e-21 |
| 2.5 | 3.276619e-17 |
| 3 | 6.131200e-14 |
| 3.5 | 1.981877e-11 |
| 4 | 1.977172e-09 |
| 4.5 | 8.565662e-08 |
| 5 | 1.999487e-06 |
| 6 | 2.900426e-04 |
| 7 | 1.232385e-02 |
| 8 | 2.255623e-01 |
| 9 | 2.236565e+00 |
| 10 | 1.390437e+01 |

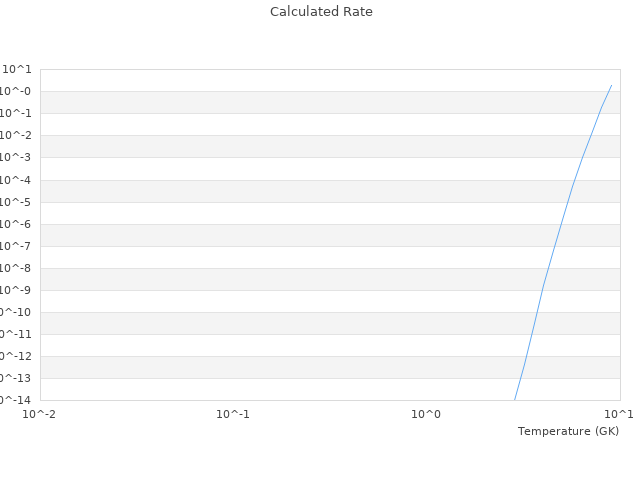

| View Graph | |
