Datapoints for he4 + ca39 -> n + ti42
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.636890e-256 |
| 0.2 | 1.115515e-190 |
| 0.3 | 3.333369e-125 |
| 0.4 | 1.789354e-92 |
| 0.5 | 7.696437e-73 |
| 0.6 | 9.394133e-60 |
| 0.7 | 2.084120e-50 |
| 0.8 | 2.126217e-43 |
| 0.9 | 6.002594e-38 |
| 1 | 1.376328e-33 |
| 1.5 | 1.665304e-20 |
| 2 | 5.884050e-14 |
| 2.5 | 5.097623e-10 |
| 3 | 2.195752e-07 |
| 3.5 | 1.706134e-05 |
| 4 | 4.552611e-04 |
| 4.5 | 5.963777e-03 |
| 5 | 4.751446e-02 |
| 6 | 1.117857e+00 |
| 7 | 1.125689e+01 |
| 8 | 6.681352e+01 |
| 9 | 2.790885e+02 |
| 10 | 9.123393e+02 |

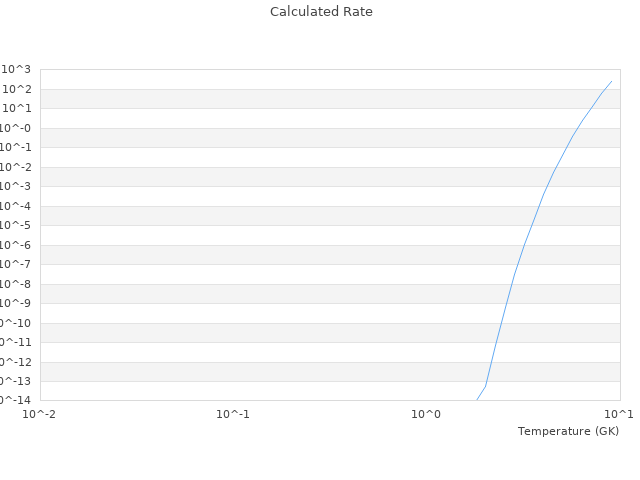

| View Graph | |
