Datapoints for he4 + ca44 -> n + ti47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.510189e-111 |
| 0.15 | 2.463847e-74 |
| 0.2 | 7.542313e-56 |
| 0.3 | 2.953904e-37 |
| 0.4 | 7.249738e-28 |
| 0.5 | 3.637355e-22 |
| 0.6 | 2.581250e-18 |
| 0.7 | 1.596097e-15 |
| 0.8 | 2.137060e-13 |
| 0.9 | 1.028149e-11 |
| 1 | 2.409641e-10 |
| 1.5 | 5.139969e-06 |
| 2 | 1.308606e-03 |
| 2.5 | 5.316850e-02 |
| 3 | 8.271592e-01 |
| 3.5 | 7.208220e+00 |
| 4 | 4.268762e+01 |
| 4.5 | 1.916335e+02 |
| 5 | 6.972280e+02 |
| 6 | 5.766283e+03 |
| 7 | 2.982082e+04 |
| 8 | 1.077961e+05 |
| 9 | 2.908597e+05 |
| 10 | 6.110236e+05 |

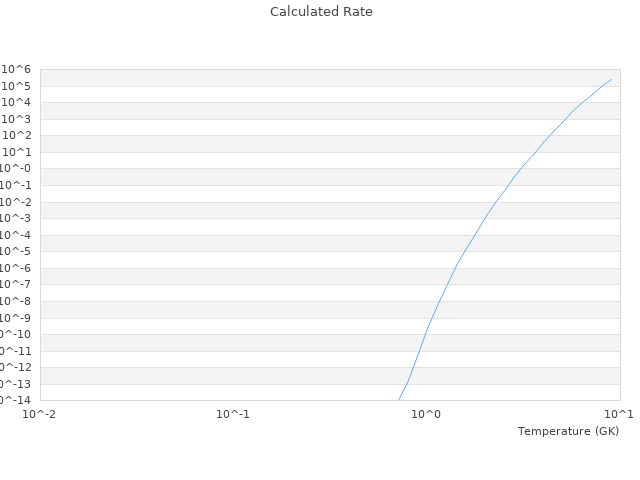

| View Graph | |
