Datapoints for p + f16 -> n + ne16
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 5.271354e-229 |
| 0.4 | 8.703881e-170 |
| 0.5 | 2.968843e-134 |
| 0.6 | 1.455184e-110 |
| 0.7 | 1.219055e-93 |
| 0.8 | 6.019657e-81 |
| 0.9 | 4.501772e-71 |
| 1 | 3.575644e-63 |
| 1.5 | 1.828058e-39 |
| 2 | 1.337884e-27 |
| 2.5 | 1.788321e-20 |
| 3 | 1.020384e-15 |
| 3.5 | 2.573795e-12 |
| 4 | 9.236476e-10 |
| 4.5 | 9.028082e-08 |
| 5 | 3.548754e-06 |
| 6 | 8.853867e-04 |
| 7 | 4.618422e-02 |
| 8 | 9.039235e-01 |
| 9 | 9.187329e+00 |
| 10 | 5.893653e+01 |

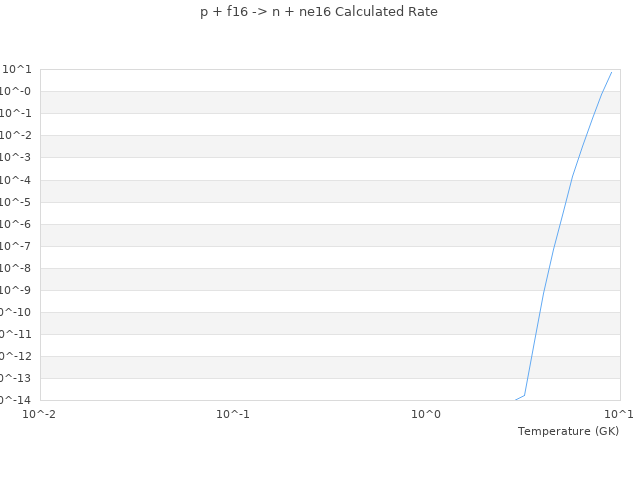

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
