Datapoints for p + f17 -> n + ne17
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.371480e-249 |
| 0.4 | 2.335574e-185 |
| 0.5 | 8.130793e-147 |
| 0.6 | 4.045285e-121 |
| 0.7 | 9.197888e-103 |
| 0.8 | 5.404988e-89 |
| 0.9 | 2.775993e-78 |
| 1 | 1.030521e-69 |
| 1.5 | 5.401429e-44 |
| 2 | 4.019028e-31 |
| 2.5 | 2.165327e-23 |
| 3 | 3.134122e-18 |
| 3.5 | 1.538730e-14 |
| 4 | 9.106429e-12 |
| 4.5 | 1.314140e-09 |
| 5 | 7.057427e-08 |
| 6 | 2.813628e-05 |
| 7 | 2.052088e-03 |
| 8 | 5.164475e-02 |
| 9 | 6.381569e-01 |
| 10 | 4.784617e+00 |

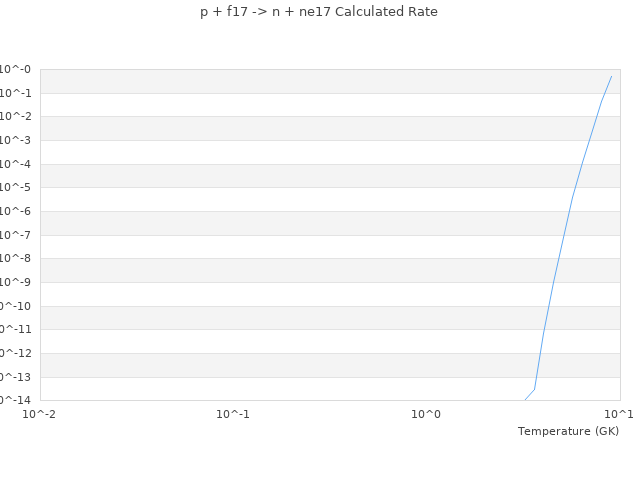

| View Graph | |
