Datapoints for p + ti37 -> n + v37
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 5.782760e-292 |
| 0.5 | 7.654269e-232 |
| 0.6 | 9.209571e-192 |
| 0.7 | 3.914086e-163 |
| 0.8 | 1.158108e-141 |
| 0.9 | 5.800737e-125 |
| 1 | 1.328433e-111 |
| 1.5 | 1.603309e-71 |
| 2 | 1.778774e-51 |
| 2.5 | 1.912019e-39 |
| 3 | 2.024325e-31 |
| 3.5 | 1.100611e-25 |
| 4 | 2.218337e-21 |
| 4.5 | 4.969781e-18 |
| 5 | 2.391426e-15 |
| 6 | 2.551497e-11 |
| 7 | 1.943257e-08 |
| 8 | 2.836811e-06 |
| 9 | 1.373972e-04 |
| 10 | 3.068522e-03 |

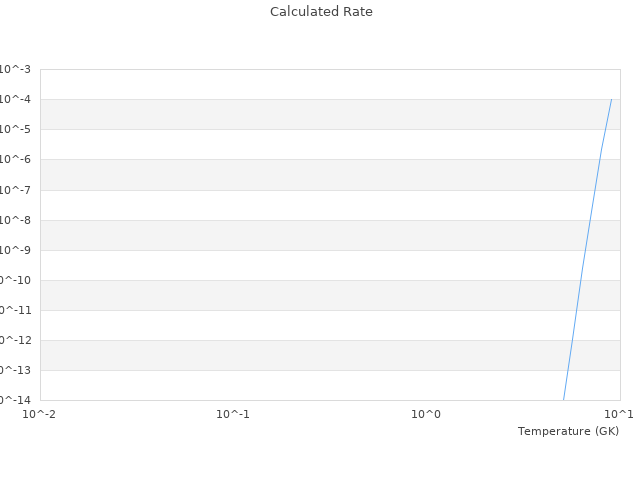

| View Graph | |
