Datapoints for p + zr92 -> he4 + y89
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.018085e-35 |
| 0.15 | 1.259213e-28 |
| 0.2 | 1.050143e-24 |
| 0.3 | 9.930871e-20 |
| 0.4 | 1.485516e-16 |
| 0.5 | 2.796997e-14 |
| 0.6 | 1.547010e-12 |
| 0.7 | 3.840617e-11 |
| 0.8 | 5.442887e-10 |
| 0.9 | 5.108786e-09 |
| 1 | 3.502336e-08 |
| 1.5 | 2.933857e-05 |
| 2 | 1.828291e-03 |
| 2.5 | 3.149671e-02 |
| 3 | 2.581334e-01 |
| 3.5 | 1.323502e+00 |
| 4 | 4.963105e+00 |
| 4.5 | 1.499748e+01 |
| 5 | 3.892878e+01 |
| 6 | 1.958735e+02 |
| 7 | 7.930005e+02 |
| 8 | 2.934830e+03 |
| 9 | 1.073203e+04 |
| 10 | 4.077063e+04 |

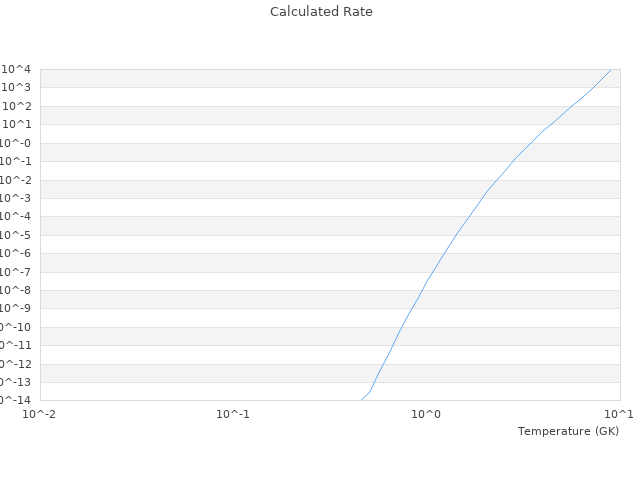

| View Graph | |
