Datapoints for p + zr94 -> he4 + y91
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.548632e-36 |
| 0.15 | 9.032630e-30 |
| 0.2 | 6.152913e-26 |
| 0.3 | 4.392849e-21 |
| 0.4 | 5.452808e-18 |
| 0.5 | 9.014770e-16 |
| 0.6 | 4.547223e-14 |
| 0.7 | 1.058055e-12 |
| 0.8 | 1.434657e-11 |
| 0.9 | 1.309315e-10 |
| 1 | 8.840879e-10 |
| 1.5 | 7.797941e-07 |
| 2 | 5.775353e-05 |
| 2.5 | 1.255184e-03 |
| 3 | 1.338011e-02 |
| 3.5 | 9.052547e-02 |
| 4 | 4.500064e-01 |
| 4.5 | 1.799346e+00 |
| 5 | 6.142135e+00 |
| 6 | 5.187093e+01 |
| 7 | 3.346046e+02 |
| 8 | 1.856585e+03 |
| 9 | 9.528343e+03 |
| 10 | 4.741346e+04 |

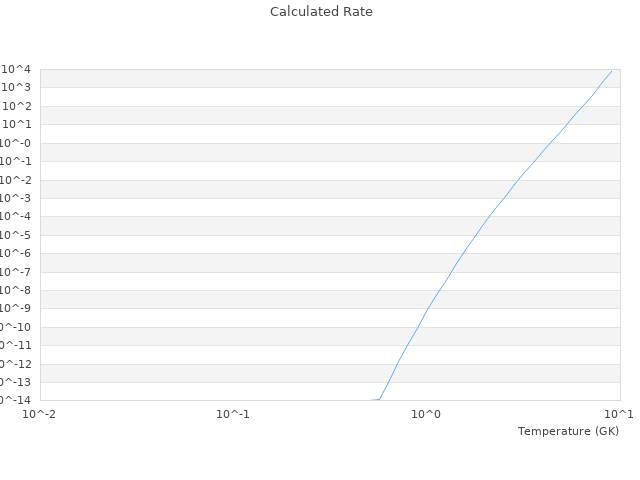

| View Graph | |
