Datapoints for p + zr96 -> he4 + y93
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.021583e-37 |
| 0.15 | 2.340599e-31 |
| 0.2 | 1.285407e-27 |
| 0.3 | 6.948741e-23 |
| 0.4 | 7.331156e-20 |
| 0.5 | 1.102705e-17 |
| 0.6 | 5.293240e-16 |
| 0.7 | 1.209911e-14 |
| 0.8 | 1.649938e-13 |
| 0.9 | 1.541785e-12 |
| 1 | 1.080965e-11 |
| 1.5 | 1.309447e-08 |
| 2 | 1.479633e-06 |
| 2.5 | 5.067875e-05 |
| 3 | 8.504421e-04 |
| 3.5 | 8.887200e-03 |
| 4 | 6.625435e-02 |
| 4.5 | 3.832544e-01 |
| 5 | 1.818168e+00 |
| 6 | 2.602963e+01 |
| 7 | 2.370140e+02 |
| 8 | 1.537695e+03 |
| 9 | 7.631665e+03 |
| 10 | 3.038279e+04 |

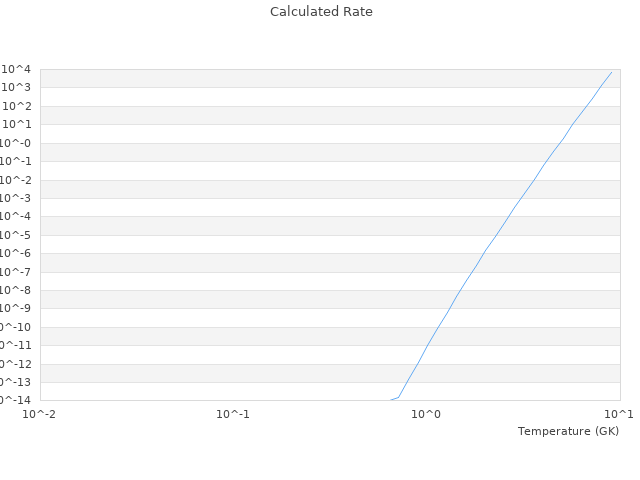

| View Graph | |
