Datapoints for p + sb109 -> he4 + sn106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.042846e-39 |
| 0.15 | 8.724168e-32 |
| 0.2 | 2.336800e-27 |
| 0.3 | 8.903529e-22 |
| 0.4 | 3.068708e-18 |
| 0.5 | 1.024530e-15 |
| 0.6 | 8.680231e-14 |
| 0.7 | 3.013845e-12 |
| 0.8 | 5.620498e-11 |
| 0.9 | 6.649592e-10 |
| 1 | 5.566628e-09 |
| 1.5 | 9.590827e-06 |
| 2 | 9.669589e-04 |
| 2.5 | 2.383413e-02 |
| 3 | 2.576166e-01 |
| 3.5 | 1.635354e+00 |
| 4 | 7.194515e+00 |
| 4.5 | 2.429518e+01 |
| 5 | 6.734939e+01 |
| 6 | 3.400738e+02 |
| 7 | 1.174829e+03 |
| 8 | 3.176206e+03 |
| 9 | 7.299077e+03 |
| 10 | 1.504926e+04 |

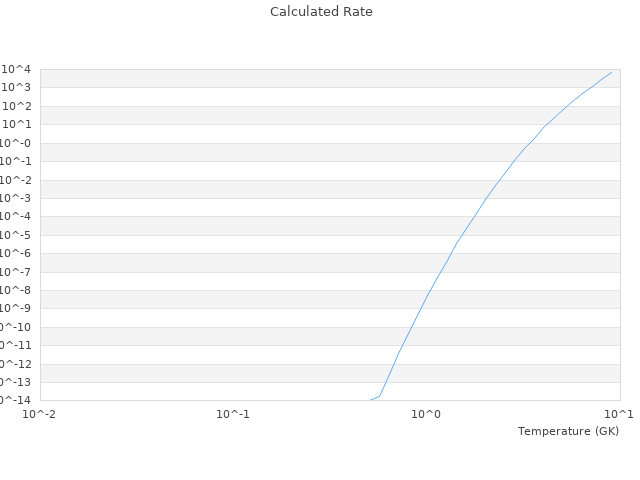

| View Graph | |
