Datapoints for p + xe106 -> he4 + i103
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.566715e-68 |
| 0.15 | 1.048279e-58 |
| 0.2 | 1.357529e-52 |
| 0.3 | 1.769408e-44 |
| 0.4 | 4.950391e-39 |
| 0.5 | 5.733076e-35 |
| 0.6 | 9.526846e-32 |
| 0.7 | 4.294281e-29 |
| 0.8 | 7.592796e-27 |
| 0.9 | 6.643829e-25 |
| 1 | 3.361849e-23 |
| 1.5 | 5.894885e-17 |
| 2 | 7.178968e-13 |
| 2.5 | 6.187619e-10 |
| 3 | 1.039765e-07 |
| 3.5 | 5.814306e-06 |
| 4 | 1.485656e-04 |
| 4.5 | 2.126421e-03 |
| 5 | 1.958422e-02 |
| 6 | 6.398918e-01 |
| 7 | 8.757510e+00 |
| 8 | 6.856208e+01 |
| 9 | 3.749742e+02 |
| 10 | 1.640353e+03 |

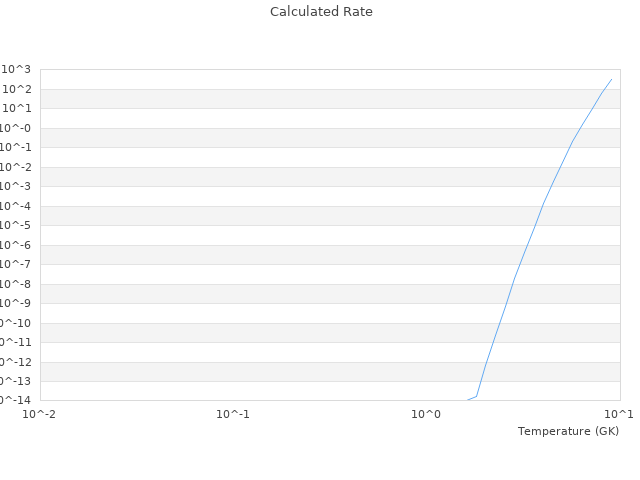

| View Graph | |
