Datapoints for he4 + i117 -> p + xe120
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.232789e-211 |
| 0.15 | 1.802694e-150 |
| 0.2 | 4.104431e-119 |
| 0.3 | 2.904987e-86 |
| 0.4 | 7.984564e-69 |
| 0.5 | 8.698971e-58 |
| 0.6 | 4.627371e-50 |
| 0.7 | 2.746390e-44 |
| 0.8 | 9.025092e-40 |
| 0.9 | 4.079079e-36 |
| 1 | 4.428162e-33 |
| 1.5 | 4.137749e-23 |
| 2 | 2.386465e-17 |
| 2.5 | 1.809953e-13 |
| 3 | 1.255444e-10 |
| 3.5 | 1.946055e-08 |
| 4 | 1.086322e-06 |
| 4.5 | 2.894670e-05 |
| 5 | 4.404155e-04 |
| 6 | 2.963437e-02 |
| 7 | 6.057906e-01 |
| 8 | 5.252730e+00 |
| 9 | 2.367139e+01 |
| 10 | 6.331692e+01 |

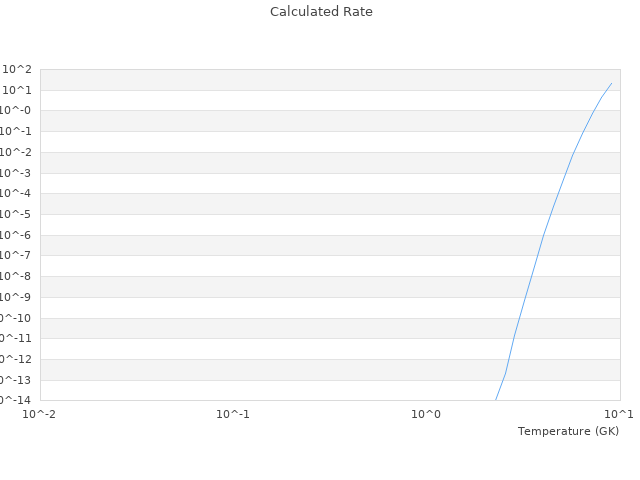

| View Graph | |
