Datapoints for p + be7 -> b8

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.948493e-04
0.15 3.655271e-03
0.2 1.756253e-02
0.3 1.225722e-01
0.4 4.103259e-01
0.5 9.621493e-01
0.6 1.847260e+00
0.7 3.141658e+00
0.8 4.932406e+00
0.9 7.301313e+00
1 1.030510e+01
1.5 3.456399e+01
2 6.926471e+01
2.5 1.082796e+02
3 1.488956e+02
3.5 1.903855e+02
4 2.327247e+02
4.5 2.760563e+02
5 3.205182e+02
6 4.131467e+02
7 5.108261e+02
8 6.133250e+02
9 7.201885e+02
10 8.308511e+02

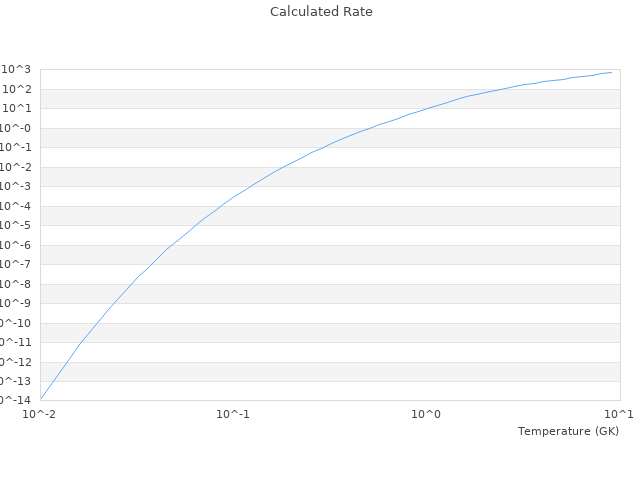

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 0.000294 0.000294849333596 0.2889 %
0.15 0.00364 0.00365527115607 0.4195 %
0.2 0.0175 0.0175625336557 0.3573 %
0.3 0.122 0.122572195795 0.469 %
0.4 0.41 0.4103258655 0.0795 %
0.5 0.966 0.962149312693 0.3986 %
0.6 1.86 1.84726002525 0.6849 %
0.7 3.17 3.14165837451 0.8941 %
0.8 4.98 4.93240574348 0.9557 %
0.9 7.36 7.30131264886 0.7974 %
1 10.4 10.3050954749 0.9125 %
1.5 34.5 34.5639899868 0.1855 %
2 69.1 69.2647103765 0.2384 %
2.5 108 108.279623724 0.2589 %
3 149 148.895614138 0.0701 %
3.5 190 190.385548929 0.2029 %
4 232 232.724670731 0.3124 %
4.5 279.7 276.05631132 1.3027 %
5 320 320.518150972 0.1619 %
6 412 413.146687902 0.2783 %
7 511 510.826071647 0.034 %
8 613 613.325043829 0.053 %
9 721 720.188471837 0.1126 %
10 832 830.85106708 0.1381 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
