Datapoints for he4 + d -> li6

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.274865e-05
0.15 8.677039e-05
0.2 2.970292e-04
0.3 1.448063e-03
0.4 4.078586e-03
0.5 8.733365e-03
0.6 1.598154e-02
0.7 2.670148e-02
0.8 4.233173e-02
0.9 6.478305e-02
1 9.604931e-02
1.5 4.185993e-01
2 9.532227e-01
2.5 1.528276e+00
3 2.058423e+00
3.5 2.555277e+00
4 3.053890e+00
4.5 3.570988e+00
5 4.106333e+00
6 5.222067e+00
7 6.418978e+00
8 7.749061e+00
9 9.269871e+00
10 1.104174e+01

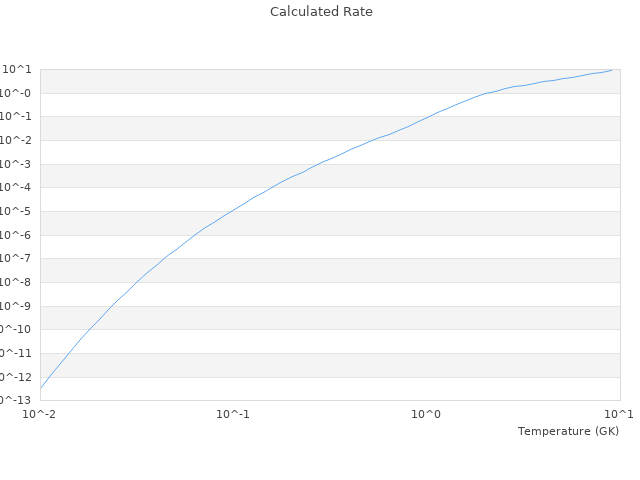

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 1.28E-5 1.27486545231E-5 0.4011 %
0.15 8.76E-5 8.67703927968E-5 0.947 %
0.2 0.0003 0.000297029247994 0.9903 %
0.3 0.00145 0.00144806343574 0.1336 %
0.4 0.00403 0.00407858581013 1.2056 %
0.5 0.00856 0.00873336453223 2.0253 %
0.6 0.0157 0.0159815437525 1.7933 %
0.7 0.0264 0.0267014802998 1.142 %
0.8 0.0424 0.0423317346844 0.161 %
0.9 0.0656 0.0647830521007 1.2453 %
1 0.0981 0.0960493134443 2.0904 %
1.5 0.422 0.418599274784 0.8059 %
2 0.94 0.953222702118 1.4067 %
2.5 1.51 1.52827563751 1.2103 %
3 2.06 2.05842253397 0.0766 %
3.5 2.57 2.55527673527 0.5729 %
4 3.07 3.05389027307 0.5247 %
5 4.07 4.1063325741 0.8927 %
6 5.17 5.22206731252 1.0071 %
7 6.41 6.4189778434 0.1401 %
8 7.81 7.74906051067 0.7803 %
9 9.35 9.2698707305 0.857 %
10 11 11.0417352866 0.3794 %
