Datapoints for p + li6 -> be7

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 7.432154e-02
0.15 5.462380e-01
0.2 1.876884e+00
0.3 8.525161e+00
0.4 2.159687e+01
0.5 4.122361e+01
0.6 6.685103e+01
0.7 9.768614e+01
0.8 1.329074e+02
0.9 1.717532e+02
1 2.135524e+02
1.5 4.496078e+02
2 7.035096e+02
2.5 9.572446e+02
3 1.204589e+03
3.5 1.444171e+03
4 1.676629e+03
4.5 1.903402e+03
5 2.126210e+03
6 2.566970e+03
7 3.012413e+03
8 3.474949e+03
9 3.966213e+03
10 4.497608e+03

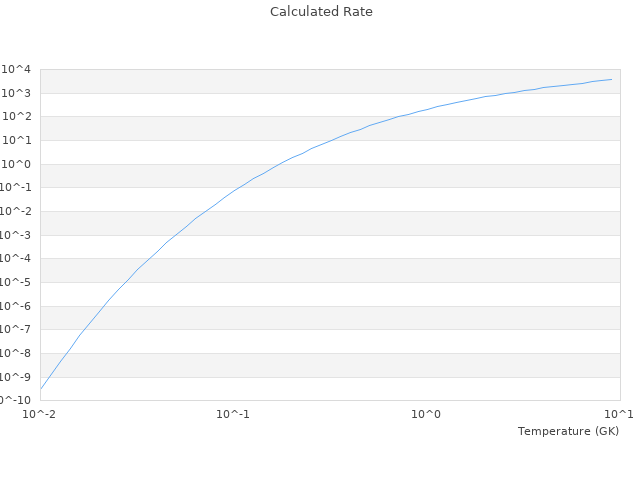

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 0.0754 0.0743215379006 1.4303 %
0.15 0.557 0.546238034616 1.9321 %
0.2 1.91 1.8768844658 1.7338 %
0.3 8.62 8.52516068075 1.1002 %
0.4 21.7 21.5968722522 0.4752 %
0.5 41.3 41.2236142409 0.185 %
0.6 66.8 66.8510339352 0.0764 %
0.7 97.5 97.6861375579 0.1909 %
0.8 133 132.907422712 0.0696 %
0.9 171 171.753194384 0.4405 %
1 213 213.552373031 0.2593 %
1.5 441 449.607810287 1.9519 %
2 684 703.509605363 2.8523 %
2.5 924 957.244611982 3.5979 %
3 1180 1204.58898963 2.0838 %
3.5 1430 1444.17127315 0.991 %
4 1680 1676.62876588 0.2007 %
5 2180 2126.20979953 2.4674 %
6 2660 2566.97000622 3.4974 %
7 3120 3012.41347515 3.4483 %
8 3560 3474.94903907 2.3891 %
9 3960 3966.21259576 0.1569 %
10 4320 4497.60826239 4.1113 %
