Datapoints for he4 + li7 -> b11

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.094064e-09
0.15 1.564374e-05
0.2 1.402809e-03
0.3 1.059526e-01
0.4 8.288119e-01
0.5 2.895907e+00
0.6 7.522245e+00
0.7 1.707139e+01
0.8 3.460372e+01
0.9 6.279368e+01
1 1.031942e+02
1.5 4.704135e+02
2 9.797128e+02
2.5 1.510741e+03
3 2.038380e+03
3.5 2.569490e+03
4 3.106339e+03
4.5 3.636643e+03
5 4.136492e+03
6 4.939072e+03
7 5.382048e+03
8 5.517991e+03
9 5.530035e+03
10 5.603869e+03

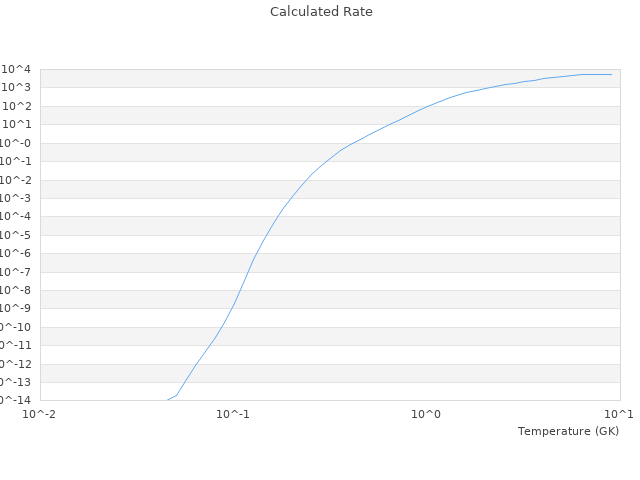

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 2.1E-9 2.09406433702E-9 0.2827 %
0.15 1.57E-5 1.56437387832E-5 0.3584 %
0.2 0.0014 0.00140280933574 0.2007 %
0.3 0.106 0.10595259948 0.0447 %
0.4 0.831 0.828811916367 0.2633 %
0.5 2.89 2.89590713542 0.2044 %
0.6 7.45 7.52224482664 0.9697 %
0.7 16.9 17.0713917887 1.0142 %
0.8 34.4 34.6037175568 0.5922 %
0.9 62.8 62.7936752347 0.0101 %
1 104 103.194151295 0.7749 %
1.5 478 470.413496098 1.5871 %
2 971 979.712837974 0.8973 %
2.5 1480 1510.74140692 2.0771 %
3 2000 2038.37989984 1.919 %
3.5 2570 2569.49036857 0.0198 %
4 3150 3106.33932031 1.3861 %
5 4210 4136.49189774 1.746 %
6 4910 4939.07230611 0.5921 %
7 5300 5382.04771228 1.5481 %
8 5520 5517.99099645 0.0364 %
9 5610 5530.0348205 1.4254 %
10 5580 5603.8685134 0.4278 %
