Datapoints for p + be9 -> b10

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.581195e-02
0.15 2.157508e-01
0.2 1.158682e+00
0.3 1.079092e+01
0.4 4.342120e+01
0.5 1.087527e+02
0.6 2.085273e+02
0.7 3.412801e+02
0.8 5.057471e+02
0.9 7.027962e+02
1 9.365324e+02
1.5 2.948941e+03
2 6.779507e+03
2.5 1.175620e+04
3 1.672556e+04
3.5 2.101309e+04
4 2.445135e+04
4.5 2.712149e+04
5 2.916189e+04
6 3.178974e+04
7 3.295279e+04
8 3.307744e+04
9 3.252140e+04
10 3.155871e+04

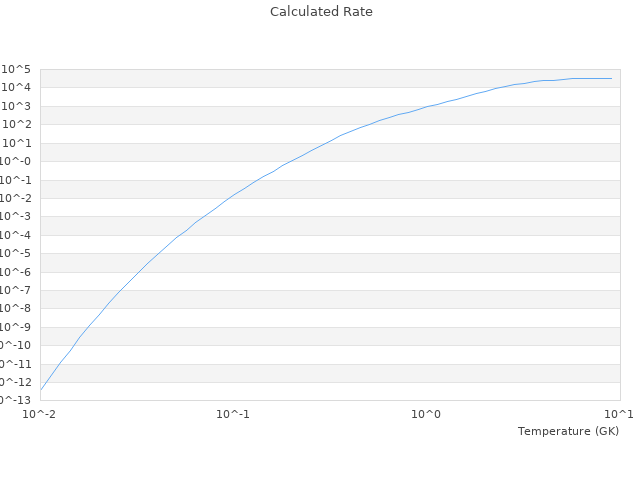

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 0.0157 0.0158119539857 0.7131 %
0.15 0.216 0.215750785584 0.1154 %
0.2 1.18 1.15868240135 1.8066 %
0.3 10.7 10.7909199495 0.8497 %
0.4 43 43.4212032324 0.9795 %
0.5 109 108.752680489 0.2269 %
0.6 211 208.527304618 1.1719 %
0.7 344 341.280089193 0.7907 %
0.8 504 505.747073881 0.3466 %
0.9 695 702.7961601 1.1217 %
1 920 936.53243304 1.797 %
1.5 2920 2948.94120095 0.9911 %
2 6750 6779.50662866 0.4371 %
2.5 11600 11756.1996457 1.3465 %
3 16400 16725.5607525 1.9851 %
3.5 20700 21013.0945461 1.5125 %
4 24600 24451.3519586 0.6043 %
5 29000 29161.8908939 0.5582 %
6 31500 31789.7365041 0.9198 %
7 32900 32952.7909785 0.1605 %
8 32600 33077.4439118 1.4646 %
9 32300 32521.3990706 0.6854 %
10 32400 31558.7078246 2.5966 %
