Datapoints for n + he4 + he4 -> be9

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.108896e-09
0.15 5.259689e-08
0.2 1.832788e-07
0.3 4.995822e-07
0.4 6.863058e-07
0.5 7.441026e-07
0.6 7.311764e-07
0.7 6.860480e-07
0.8 6.278706e-07
0.9 5.658659e-07
1 5.050412e-07
1.5 2.832505e-07
2 1.781164e-07
2.5 1.226701e-07
3 8.998753e-08
3.5 6.925681e-08
4 5.531634e-08
4.5 4.548455e-08
5 3.827121e-08
6 2.852989e-08
7 2.232143e-08
8 1.802163e-08
9 1.484363e-08
10 1.237226e-08

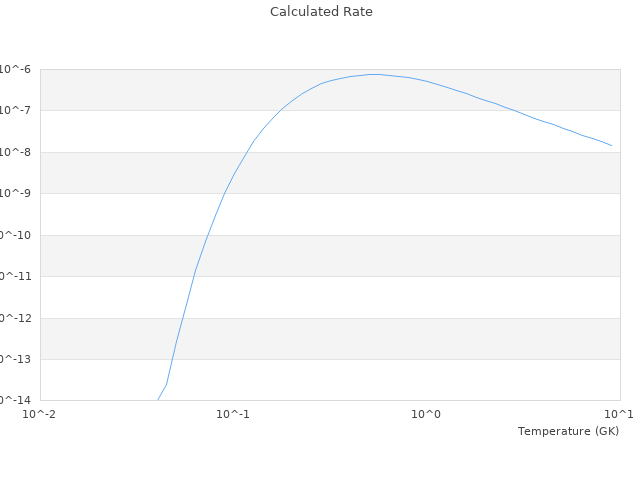

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 3.12E-9 3.10889647336E-9 0.3559 %
0.15 5.23E-8 5.25968917371E-8 0.5677 %
0.2 1.82E-7 1.83278822781E-7 0.7026 %
0.3 4.99E-7 4.99582202602E-7 0.1167 %
0.4 6.9E-7 6.86305767739E-7 0.5354 %
0.5 7.5E-7 7.44102602452E-7 0.7863 %
0.6 7.34E-7 7.31176381683E-7 0.3847 %
0.7 6.84E-7 6.86047964032E-7 0.2994 %
0.8 6.22E-7 6.27870614554E-7 0.9438 %
0.9 5.6E-7 5.6586586184E-7 1.0475 %
1 5.0E-7 5.05041185308E-7 1.0082 %
1.5 2.89E-7 2.83250530233E-7 1.9894 %
2 1.8E-7 1.78116354145E-7 1.0465 %
2.5 1.21E-7 1.2267012567E-7 1.3803 %
3 8.87E-8 8.99875294821E-8 1.4516 %
3.5 6.83E-8 6.92568117964E-8 1.4009 %
4 5.48E-8 5.53163421086E-8 0.9422 %
5 3.83E-8 3.82712091983E-8 0.0752 %
6 1.94E-8 2.8529885018E-8 47.0613 %
7 2.26E-8 2.23214301692E-8 1.2326 %
8 1.81E-8 1.80216286523E-8 0.433 %
9 1.48E-8 1.4843629096E-8 0.2948 %
10 1.23E-8 1.23722620813E-8 0.5875 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
