Datapoints for p + f19 -> ne20

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 4.389100e-09
0.15 9.514654e-07
0.2 8.715449e-05
0.3 1.864154e-02
0.4 2.740326e-01
0.5 1.549821e+00
0.6 5.622756e+00
0.7 1.575566e+01
0.8 3.706949e+01
0.9 7.629425e+01
1 1.401051e+02
1.5 7.063142e+02
2 1.268644e+03
2.5 1.916033e+03
3 2.382815e+03
3.5 3.002820e+03
4 3.798320e+03
4.5 4.647917e+03
5 5.502414e+03
6 7.225162e+03
7 9.057245e+03
8 1.116490e+04
9 1.377484e+04
10 1.720052e+04

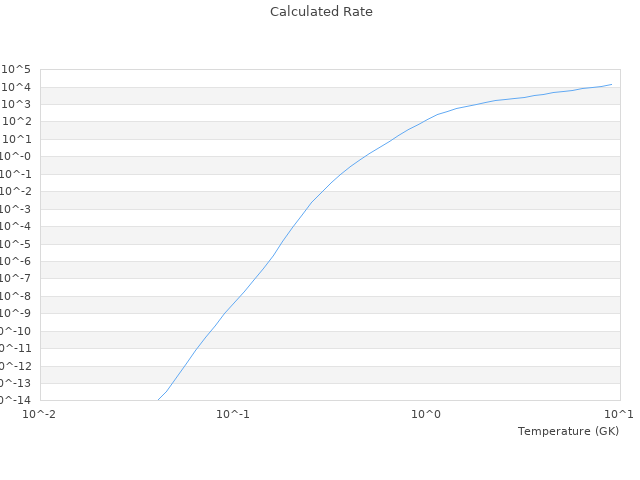

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 4.31E-9 4.38909973423E-9* 1.8353 %
0.15 9.55E-7 9.51465372334E-7* 0.3701 %
0.2 8.67E-5 8.71544880618E-5* 0.5242 %
0.3 0.0193 0.0190219769826* 1.4405 %
0.4 0.293 0.288455352813* 1.5511 %
0.5 1.63 1.68458761688* 3.3489 %
0.6 6.19 6.46293820064* 4.4093 %
0.7 19.2 18.9827262797* 1.1316 %
0.8 48.8 46.3368606251* 5.0474 %
0.9 104 100.387167315* 3.4739 %
1 193 191.924772368* 0.5571 %
1.5 1190 1157.89217035* 2.6981 %
2 2320 2306.62626735* 0.5765 %
2.5 3590 3756.92794925* 4.6498 %
3 4940 4862.88778693* 1.561 %
3.5 6340 6128.20371072* 3.3406 %
4 7750 7751.67258693* 0.0216 %
5 10600 11004.8276026* 3.8191 %
6 13600 13894.5418158* 2.1657 %
7 16600 16467.7174285* 0.7969 %
8 19700 19249.8294394* 2.2851 %
9 23000 22581.7080907* 1.8187 %
10 26400 26875.8085778* 1.8023 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
