Datapoints for p + b11 -> c12

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 7.084810e-03
0.15 1.113283e+00
0.2 1.293092e+01
0.3 1.259985e+02
0.4 3.505699e+02
0.5 6.139692e+02
0.6 8.718460e+02
0.7 1.113601e+03
0.8 1.343832e+03
0.9 1.571288e+03
1 1.804401e+03
1.5 3.228209e+03
2 5.168547e+03
2.5 7.409019e+03
3 9.621166e+03
3.5 1.154970e+04
4 1.308297e+04
4.5 1.425026e+04
5 1.517589e+04
6 1.691719e+04
7 1.914965e+04
8 2.175838e+04
9 2.390473e+04
10 2.466097e+04

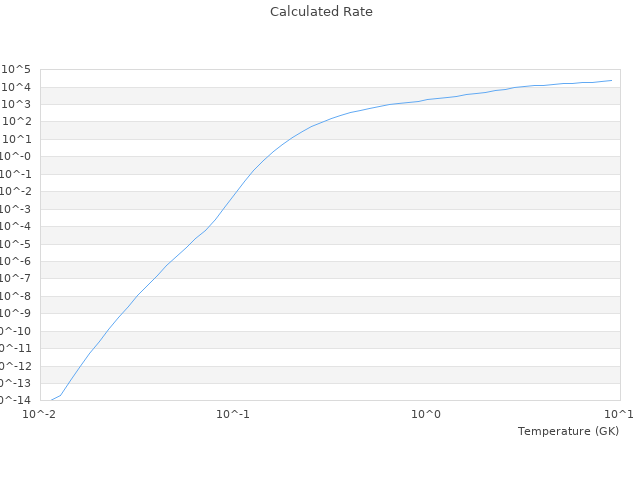

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 0.00711 0.0070848101896528 0.3543 %
0.15 1.11 1.1132834036769 0.2958 %
0.2 12.9 12.930917245476 0.2397 %
0.3 128 125.99845350416 1.5637 %
0.4 356 350.56988730156 1.5253 %
0.5 618 613.96917581703 0.6522 %
0.6 866 871.84603861333 0.6751 %
0.7 1090 1113.6009949459 2.1652 %
0.8 1310 1343.8323661782 2.5826 %
0.9 1530 1571.2882615436 2.6986 %
1 1770 1804.400518547 1.9435 %
1.5 3330 3228.2093343919 3.0568 %
2 5350 5168.5468473563 3.3916 %
2.5 7440 7409.0194804616 0.4164 %
3 9420 9621.1663271409 2.1355 %
3.5 11200 11549.695983575 3.1223 %
4 12800 13082.973526922 2.2107 %
5 15400 15175.890023239 1.4553 %
6 17500 16917.19354039 3.3303 %
7 19400 19149.65277599 1.2904 %
8 21200 21758.381135691 2.6339 %
9 23200 23904.72876355 3.0376 %
10 25400 24660.974056578 2.9096 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
