Datapoints for p + b10 -> c11

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.241364e-03
0.15 1.397367e-02
0.2 6.499279e-02
0.3 4.651859e-01
0.4 1.475292e+00
0.5 3.288471e+00
0.6 6.137136e+00
0.7 1.027224e+01
0.8 1.594466e+01
0.9 2.339099e+01
1 3.282298e+01
1.5 1.147086e+02
2 2.570972e+02
2.5 4.492800e+02
3 6.724256e+02
3.5 9.085073e+02
4 1.144321e+03
4.5 1.372078e+03
5 1.588461e+03
6 1.988502e+03
7 2.362603e+03
8 2.740644e+03
9 3.155625e+03
10 3.642707e+03

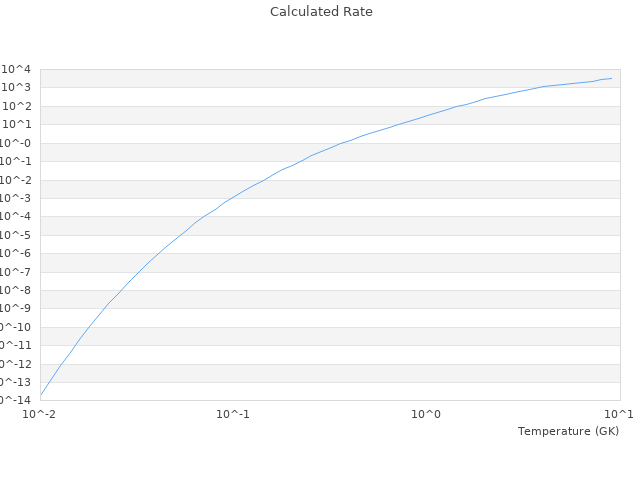

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 0.00124 0.00124136367849 0.11 %
0.15 0.014 0.0139736739205 0.188 %
0.2 0.0655 0.0649927908097 0.7744 %
0.3 0.457 0.4651859357 1.7912 %
0.4 1.49 1.47529220859 0.9871 %
0.5 3.36 3.28847140147 2.1288 %
0.6 6.22 6.13713619435 1.3322 %
0.7 10.3 10.2722407855 0.2695 %
0.8 15.8 15.9446557102 0.9155 %
0.9 23 23.3909864535 1.6999 %
1 32.1 32.8229776691 2.2523 %
1.5 115 114.708579657 0.2534 %
2 262 257.097213505 1.8713 %
2.5 458 449.279953546 1.9039 %
3 678 672.425554854 0.8222 %
3.5 905 908.507274864 0.3875 %
4 1130 1144.32122271 1.2674 %
5 1560 1588.46062279 1.8244 %
6 1980 1988.50189214 0.4294 %
7 2380 2362.60268092 0.731 %
8 2790 2740.64413702 1.769 %
9 3190 3155.62510325 1.0776 %
10 3600 3642.70729019 1.1863 %
