Datapoints for p + b10 -> he4 + be7

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.905876e+01
0.15 3.419495e+02
0.2 1.537048e+03
0.3 9.652472e+03
0.4 2.834953e+04
0.5 5.887048e+04
0.6 1.092194e+05
0.7 1.935403e+05
0.8 3.236628e+05
0.9 5.095061e+05
1 7.616880e+05
1.5 3.392382e+06
2 9.034870e+06
2.5 1.800064e+07
3 2.978030e+07
3.5 4.336628e+07
4 5.763598e+07
4.5 7.162601e+07
5 8.466166e+07
6 1.066558e+08
7 1.233875e+08
8 1.367271e+08
9 1.492110e+08
10 1.634735e+08

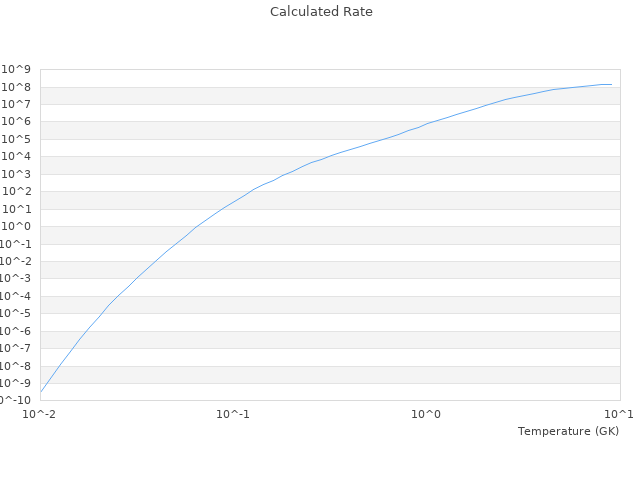

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 27.6 29.0587637805 5.2854 %
0.15 356 341.94954163 3.9468 %
0.2 1570 1537.04786161 2.0989 %
0.3 9440 9652.47218524 2.2508 %
0.4 28100 28349.5296515 0.888 %
0.5 62300 58870.480949 5.5048 %
0.6 117000 109219.423631 6.6501 %
0.7 198000 193540.256119 2.2524 %
0.8 313000 323662.827566 3.4067 %
0.9 492000 509506.077611 3.5581 %
1 715000 761687.971027 6.5298 %
1.5 3350000 3392382.29924 1.2651 %
2 9350000 9034870.16219 3.3704 %
2.5 18700000 18000639.1144 3.7399 %
3 30600000 29780298.193 2.6788 %
3.5 43500000 43366278.3389 0.3074 %
4 57300000 57635977.4409 0.5863 %
5 82900000 84661655.2128 2.125 %
6 105000000 106655838.652 1.577 %
7 123000000 123387456.989 0.315 %
8 136000000 136727128.184 0.5347 %
9 152000000 149210976.899 1.8349 %
10 163000000 163473504.182 0.2905 %
