Datapoints for n + nd145 -> nd146
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.492091e+07 |
| 0.15 | 1.844723e+07 |
| 0.2 | 2.176631e+07 |
| 0.3 | 2.805578e+07 |
| 0.4 | 3.403491e+07 |
| 0.5 | 3.975995e+07 |
| 0.6 | 4.523603e+07 |
| 0.7 | 5.045035e+07 |
| 0.8 | 5.538376e+07 |
| 0.9 | 6.001573e+07 |
| 1 | 6.432671e+07 |
| 1.5 | 8.056806e+07 |
| 2 | 8.753300e+07 |
| 2.5 | 8.609901e+07 |
| 3 | 7.836418e+07 |
| 3.5 | 6.686429e+07 |
| 4 | 5.394714e+07 |
| 4.5 | 4.140811e+07 |
| 5 | 3.037477e+07 |
| 6 | 1.445688e+07 |
| 7 | 5.937471e+06 |
| 8 | 2.134282e+06 |
| 9 | 6.784995e+05 |
| 10 | 1.923005e+05 |

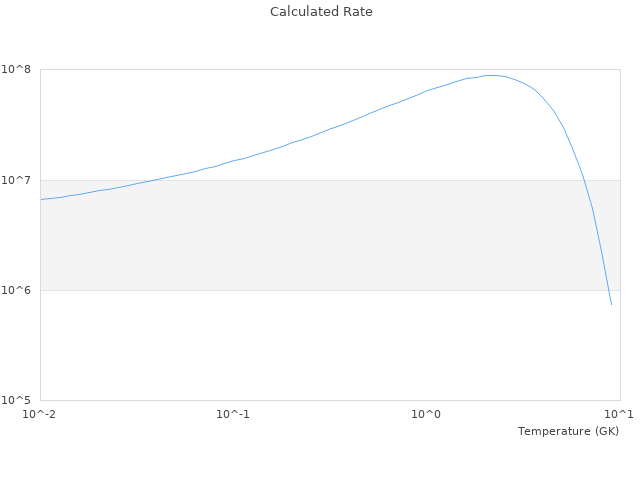

| View Graph | |
