Datapoints for n + yb176 -> yb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.892533e+06 |
| 0.15 | 8.836975e+06 |
| 0.2 | 1.075627e+07 |
| 0.3 | 1.462025e+07 |
| 0.4 | 1.856119e+07 |
| 0.5 | 2.257643e+07 |
| 0.6 | 2.664080e+07 |
| 0.7 | 3.072041e+07 |
| 0.8 | 3.477775e+07 |
| 0.9 | 3.877418e+07 |
| 1 | 4.267137e+07 |
| 1.5 | 5.946083e+07 |
| 2 | 6.946187e+07 |
| 2.5 | 7.144531e+07 |
| 3 | 6.636267e+07 |
| 3.5 | 5.652867e+07 |
| 4 | 4.461404e+07 |
| 4.5 | 3.286460e+07 |
| 5 | 2.272187e+07 |
| 6 | 9.128609e+06 |
| 7 | 2.968687e+06 |
| 8 | 7.957621e+05 |
| 9 | 1.782097e+05 |
| 10 | 3.369745e+04 |

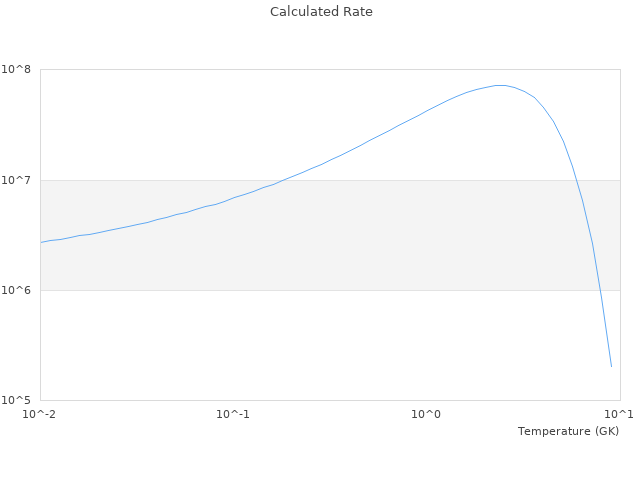

| View Graph | |
