Datapoints for n + ir192 -> ir193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.971400e+07 |
| 0.15 | 1.051781e+08 |
| 0.2 | 2.179655e+08 |
| 0.3 | 6.285753e+08 |
| 0.4 | 1.334429e+09 |
| 0.5 | 2.355219e+09 |
| 0.6 | 3.667606e+09 |
| 0.7 | 5.213444e+09 |
| 0.8 | 6.911807e+09 |
| 0.9 | 8.671569e+09 |
| 1 | 1.040243e+10 |
| 1.5 | 1.634180e+10 |
| 2 | 1.611155e+10 |
| 2.5 | 1.220789e+10 |
| 3 | 7.839793e+09 |
| 3.5 | 4.509598e+09 |
| 4 | 2.404914e+09 |
| 4.5 | 1.216637e+09 |
| 5 | 5.933429e+08 |
| 6 | 1.320929e+08 |
| 7 | 2.827118e+07 |
| 8 | 6.044690e+06 |
| 9 | 1.323555e+06 |
| 10 | 3.018089e+05 |

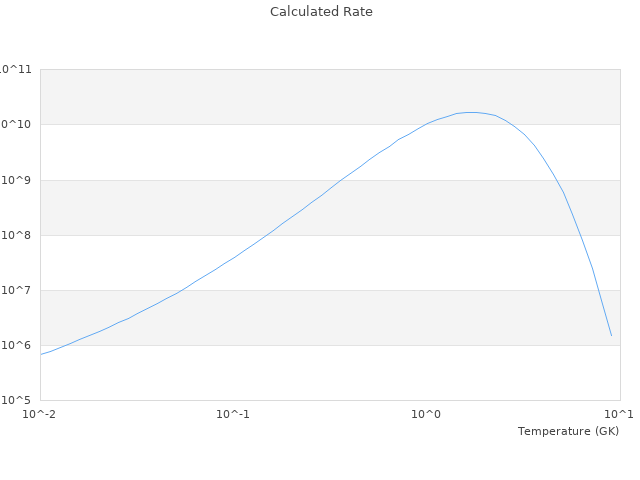

| View Graph | |
