Datapoints for p + b11 -> c12

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.037043e-02
0.15 1.204002e+00
0.2 1.323916e+01
0.3 1.271673e+02
0.4 3.605172e+02
0.5 6.488761e+02
0.6 9.440960e+02
0.7 1.224368e+03
0.8 1.487720e+03
0.9 1.746510e+03
1 2.018408e+03
1.5 3.816870e+03
2 6.062580e+03
2.5 8.327043e+03
3 1.039257e+04
3.5 1.218660e+04
4 1.371473e+04
4.5 1.501615e+04
5 1.614024e+04
6 1.804698e+04
7 1.976458e+04
8 2.154337e+04
9 2.358250e+04
10 2.606227e+04

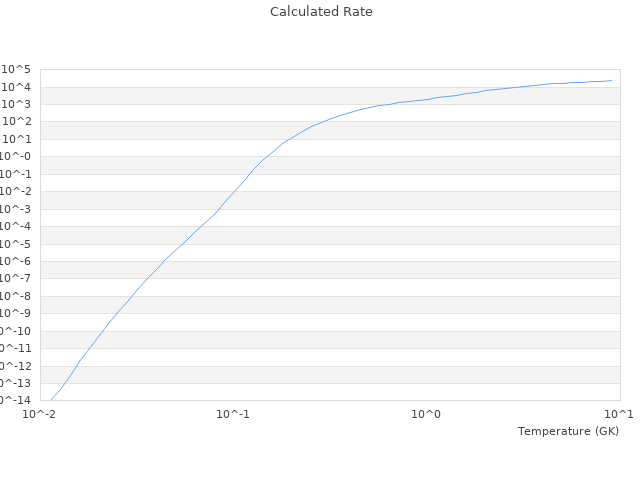

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 8.171E-16 8.10494402188E-16 0.8084 %
0.03 1.275E-8 1.29081176346E-8 1.2401 %
0.1 0.01066 0.010370434589 2.7164 %
0.3 129 127.167281239 1.4207 %
1 2046 2018.40832052 1.3486 %
3 10210 10392.5677029 1.7881 %
10 25820 26062.2726813 0.9383 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
