Datapoints for he4 + c14 -> o18

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.576206e-18
0.15 1.202409e-15
0.2 9.766032e-14
0.3 1.414545e-10
0.4 3.095902e-07
0.5 3.713611e-05
0.6 8.631715e-04
0.7 7.917268e-03
0.8 4.087850e-02
0.9 1.445268e-01
1 3.931821e-01
1.5 7.538463e+00
2 3.268416e+01
2.5 8.037680e+01
3 1.501555e+02
3.5 2.400877e+02
4 3.477600e+02
4.5 4.702350e+02
5 6.038513e+02
6 8.858112e+02
7 1.149995e+03
8 1.349798e+03
9 1.448387e+03
10 1.429969e+03

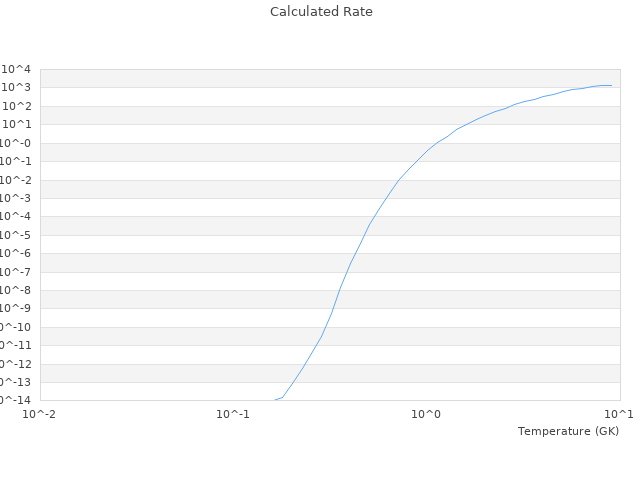

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.66E-54 2.74626461005E-54 3.243 %
0.03 1.25E-34 1.29468593687E-34 3.5749 %
0.1 1.53E-18 1.57620615212E-18 3.02 %
0.3 1.48E-10 1.41454520264E-10 4.4226 %
1 0.403 0.393182094487 2.4362 %
3 152 150.155450377 1.2135 %
10 1510 1429.96935663 5.3 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
