Datapoints for he4 + n15 -> f19

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.944801e-21
0.15 1.368424e-15
0.2 1.917330e-12
0.3 2.284612e-08
0.4 4.414208e-06
0.5 1.059828e-04
0.6 8.953928e-04
0.7 4.271090e-03
0.8 1.460026e-02
0.9 4.063161e-02
1 9.860861e-02
1.5 2.520729e+00
2 1.941858e+01
2.5 7.586670e+01
3 1.959656e+02
3.5 3.867627e+02
4 6.354741e+02
4.5 9.181724e+02
5 1.210655e+03
6 1.764331e+03
7 2.259856e+03
8 2.761023e+03
9 3.389580e+03
10 4.329731e+03

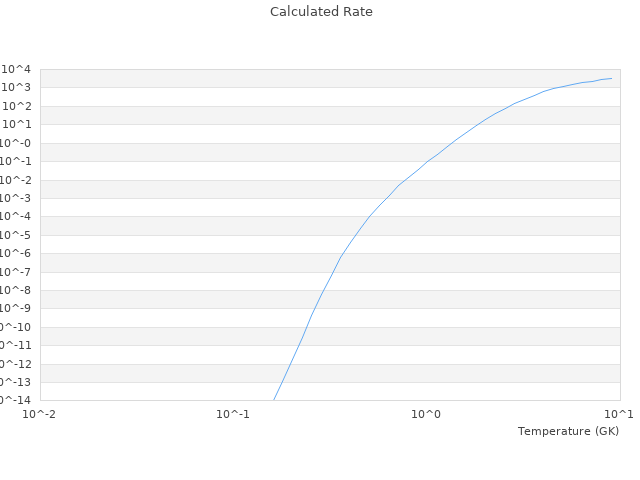

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.13E-61 2.1013466037E-61 1.3452 %
0.03 2.48E-39 2.50346654642E-39 0.9462 %
0.1 1.92E-21 1.94480089811E-21 1.2917 %
0.3 2.26E-8 2.28461223003E-8 1.089 %
1 0.0885 0.0986086138463 11.4222 %
3 198 195.965611748 1.0275 %
10 4060 4329.73071153 6.6436 %
